Removing Engine Mounting

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Objects or loads falling down

Risk of squashing or crushing

→ Secure components to prevent them from falling down.

Disconnect the battery.
Remove the heat protection plate on the generator for the engine mounting on cylinder bank 1 to 4. To do this, remove two screws. -arrows rechts-

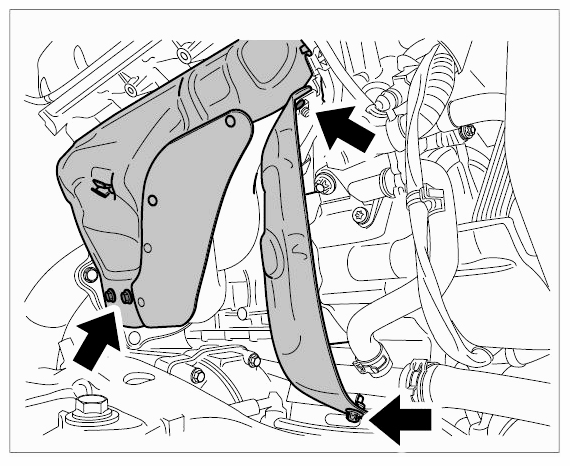

Fig 1: Locating Heat Protection Plates
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Loosen the engine mountings. To do this, loosen the fastening nuts on the brackets and remove the engine mountings. → Left bracket for auxiliary units and engine mounting → Right bracket for auxiliary units and engine mounting

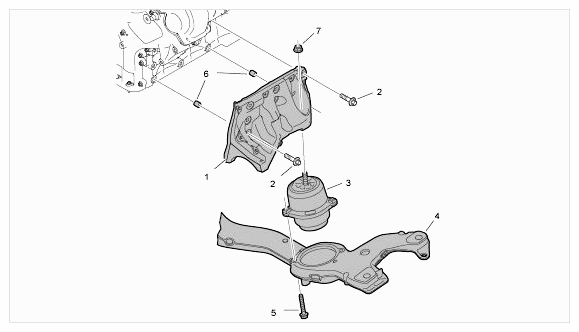

Fig 2: Exploded View Of Left Bracket For Auxiliary Units And Engine Mounting
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. Bracket for auxiliary units/engine mounting
2. Screw, M10 x 45
3. Hydraulic mount, left
4. Engine carrier
5. Screw, M10 x 65
6. Dowel sleeve
7. Nut, M12 x 1.5

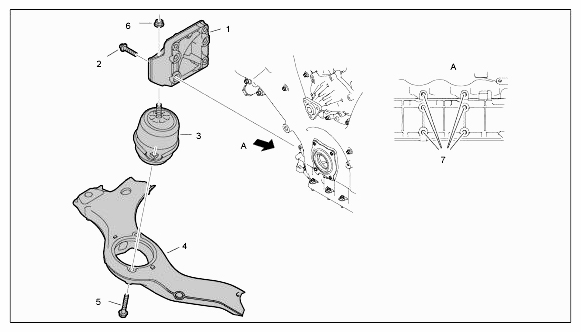

  Fig 3: Exploded View Of Right Bracket For Auxiliary Units And Engine Mounting
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. Bracket for cylinders 1 to 4
2. Screw, M10 x 45
3. Hydraulic mount, right
4. Engine carrier
5. Screw, M10 x 65
6. Nut, M12 x 1.5
7. Bores for screws, M10 x 45
1. Installation view of engine carrier on crankcase
