Installing Engine Mounting

Information

• The engine mounts must be aligned using the engine carrier.
• The engine mounts differ (left/right) and must not be interchanged.

1. Position engine mountings on the support arm. When doing so, note the positioning pin on the mounting. It must engage in the recess on the support arm.
2. Position new fastening nuts and screw them on so that the positioning pin cannot pop out. Do not tighten the fastening nuts.

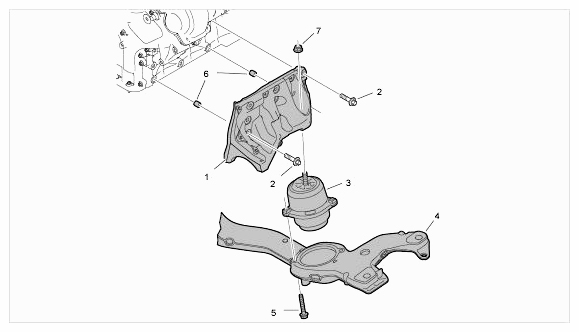

   Fig 1: Exploded View Of Left Bracket For Auxiliary Units And Engine Mounting

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   1. Bracket for auxiliary units/engine mounting
   2. Screw, M10 x 45 → Tightening torque: 65 Nm (48 ft lbs.)
   3. Hydraulic mount, left
   4. Engine carrier
   5. Screw, M10 x 65 → Tightening torque: 60 Nm (44 ft lbs.)
   6. Dowel sleeve
   7. Nut, M12 x 1.5 → Tightening torque: 75 Nm (56 ft lbs.)

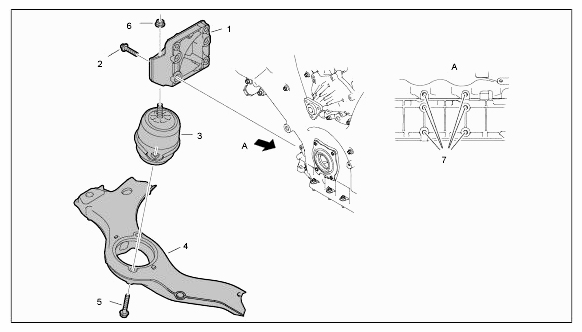

      Fig 2: Exploded View Of Right Bracket For Auxiliary Units And Engine Mounting

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   1. Engine carrier, cylinders 1 to 4
   2. Screw, M10 x 45 → Tightening torque: 65 Nm (48 ft lbs.)
   3. Hydraulic mount, right
   4. Engine carrier
   5. Screw, M10 x 65 → Tightening torque: 60 Nm (44 ft lbs.)
   6. Nut, M12 x 1.5 → Tightening torque: 75 Nm (56 ft lbs.)
   7. Bores for screws, M10 x 45
   1. Installation view of engine carrier on crankcase
3. Tighten engine mountings on the engine. Tighten the fastening nuts.
4. Fit the heat protection plate on the generator for the engine mounting on cylinder bank 1 to 4. To do this, screw in two screws. → Tightening torque: 10 Nm (7.5 ft lbs.)
5. Connect the battery.
