Removing Engine Carrier

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

This task can only be performed if the engine has been removed or suspended on the body.

Information

Do not undo the engine mounts on the engine .
If the engine mounts have been undone on the engine -A- , they must be aligned using the engine carrier .

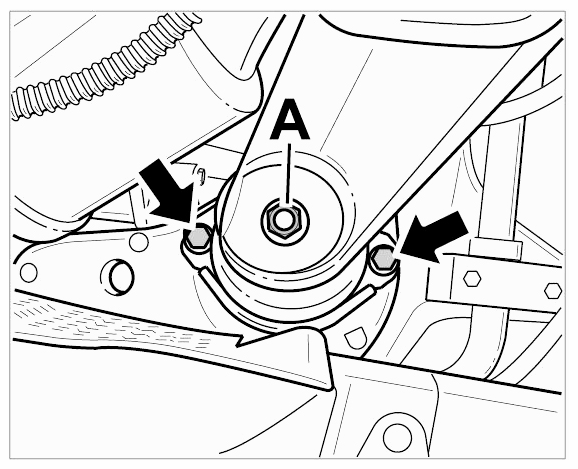

Fig 1: Locating Engine Mount
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Loosen the two fastening screws at the left and right -arrows- from above on the hydraulic mounts.

Fig 2: Locating Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Use a suitable, sturdy, long tool to unscrew the two fastening screws securing the engine carrier to the body. Remove engine carrier.

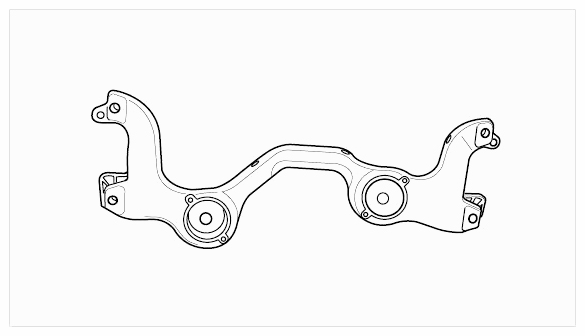

Fig 3: Identifying Engine Carrier
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
