Subsequent Work

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Fit spark plugs. → Installing Spark Plugs
  2. Fit the fuses for the ignition rod modules and the injection system.
  3. Fit lid of central electrics box. -arrows-

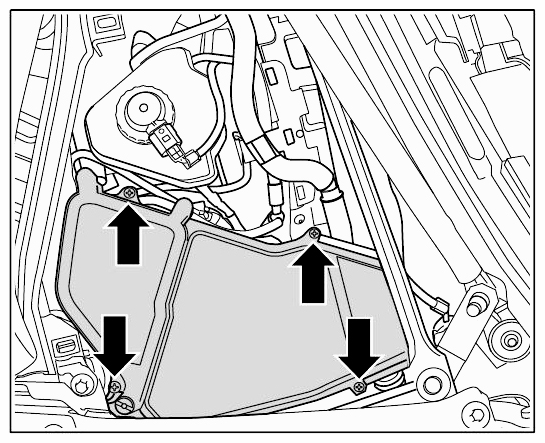

    Fig 1: Locating Central Electrics Box
    G09408904Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Read out the fault memory and erase it if necessary.
