Removing Oil Spray Jets For Piston Cooling

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

The type of oil spray jets used depends on the engine number. Always check the engine number when ordering new oil spray jets.
For specific allocations, always check the Porsche Parts Catalogue.
Adapted software must be installed on the control unit if necessary due to modified oil pressures.

Remove oil spray jets -6- . To do this, loosen the screws -7- .

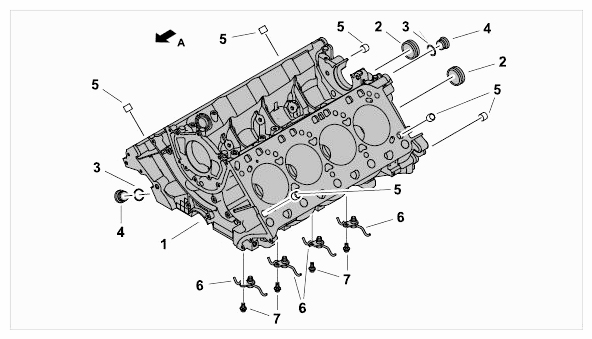

Fig 1: Exploded View Of Upper Part Of Crankcase
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
