Installing Oil Spray Jets For Piston Cooling

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

The type of oil spray jets used depends on the engine number. Always check the engine number when ordering new oil spray jets.
For specific allocations, always check the Porsche Parts Catalogue.
Adapted software must be installed on the control unit if necessary due to modified oil pressures.

Insert oil spray jets into upper part of crankcase with new sealing rings and screw down → Tightening torque: 10 Nm (7.5 ft lbs.). To do this, grease sealing ring using KluUber Syntheso GLEP 1 and fit it. Check that oil spray jets are pointing in the correct direction of spray toward the inside of the piston crown. The oil spray jet must be aimed at the piston crown. →

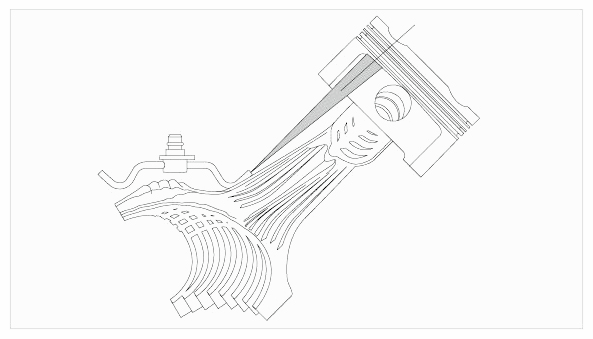

Fig 1: Identifying Spray Direction
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

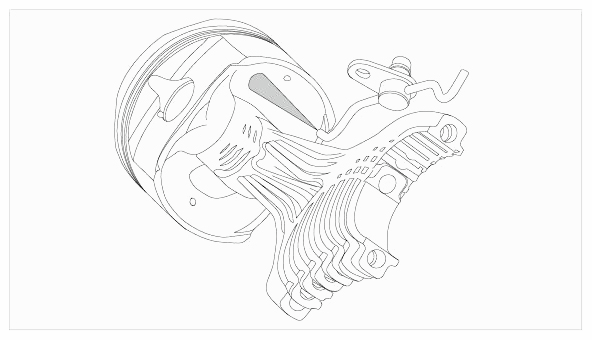

Fig 2: Identifying Spray Direction From Side
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
