WM 1001Z2 Assembling V8 4.8-Litre DFI Engine As Of October 2008 (Except Cayenne Tip, Cayenne Man, Cayenne Diesel): Tools
WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
| Designation | Type | Number | Description | |
|---|---|---|---|---|

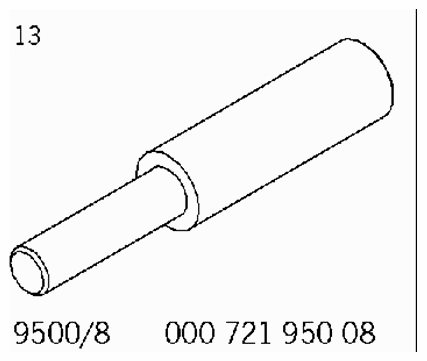

| plunger | Special tool | 9500/8 | ||

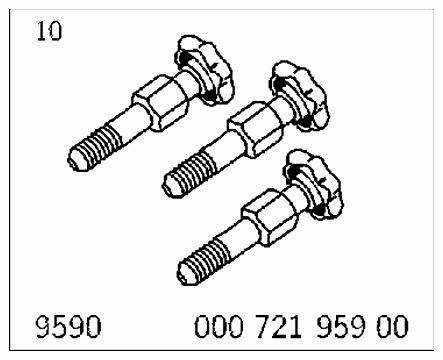

| mounting elements | Special tool | 9590 | ||

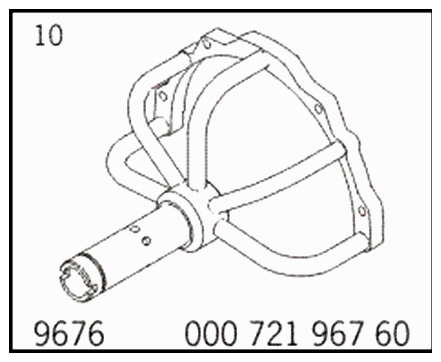

| engine support | Special tool | 9676 | ||

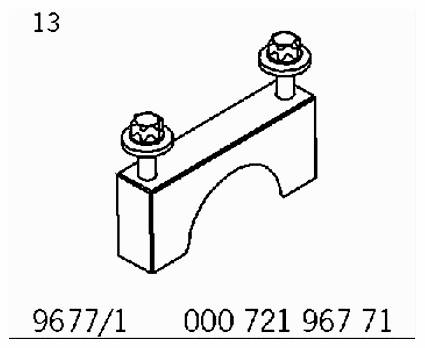

| holding bridge | Special tool | 9677/1 | ||

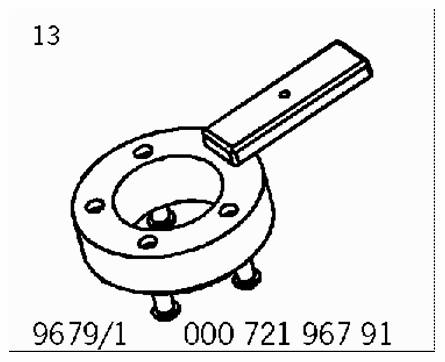

| counter-hold tool | Special tool | 9679/1 | ||

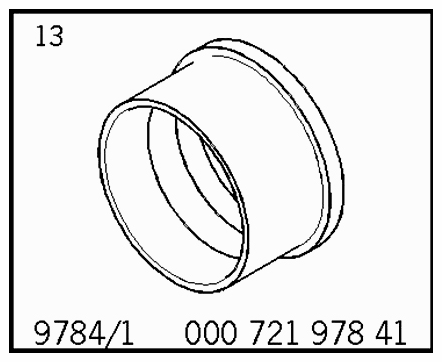

| funnel | Special tool | 9784/1 | ||

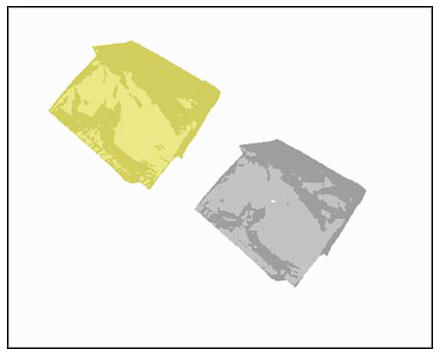

| cover for dust protection when fitting the engine | Special tool | NR.165 | ||

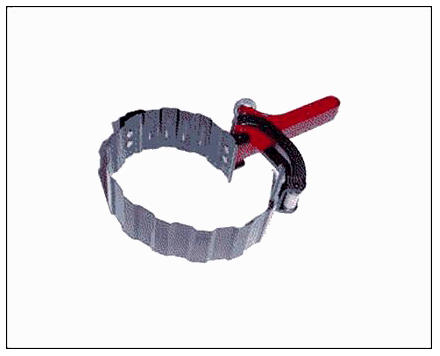

| Universal piston ring restraining strap | Commercially available tool | Nr.55 |
