Tools And Materials: Tool

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

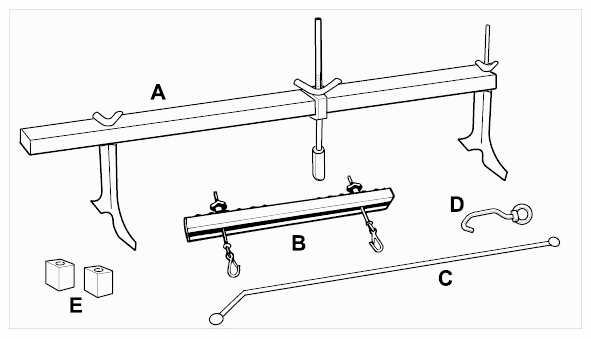

Fig 1: Identifying Special Tools
G09408647Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Item Designation Source Explanation
-A-  Support bracket 10-222 A  Only this tool is tested and approved by Porsche. It ensures good support at the wing edge.
-B-  Lifting tackle 3033  → "Commercially available" Only this tool is tested and approved by Porsche.
-C-  Bonnet stay 9704
    -D-  Not required for the 3.6 l V6 and 4.8 l V8!
-E-  Adapter 9591/2
