Tools And Materials: Tools
WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

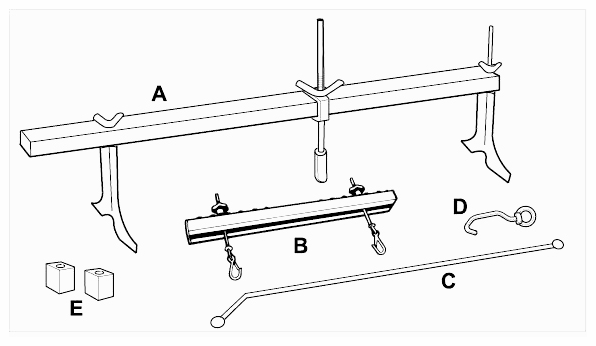

| Item | Designation | Source | Explanation |
|---|---|---|---|
| -A- | Support bracket 10-222 A | Only this tool is tested and approved by Porsche. It ensures good support at the wing edge. | |
| -B- | Lifting tackle 3033 | → "Commercially available" | Only this tool is tested and approved by Porsche. |
| -C- | Bonnet stay 9704 | ||
| -D- | Transport eyebolt 9700/1 | Not required for the 3.6-litre V6! | |
| -E- | Adapter 9591/2 | ||
| instead of -D- | Transport eyebolt 9700/2 | Bolted close to the high-pressure pump on the 3.6- litre V6. Must be removed after work is complete! |
