Securing Engine On Assembly Support

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Heavy components

Risk of squashing

→ Wear personal protective gear.

→ Get someone to help if necessary.

WARNING: Danger of objects or loads falling down

Risk of squashing or crushing

→ Secure components to prevent them from falling down.

Information

The engine needs to be suspended on an assembly support for certain repair work.

Secure engine support engine support 9676 on engine. To do this, use the four screws for mounting elements 9590 and tighten them. Crankcase on engine support (shown with inverted top section of crankcase of disassembled engine).

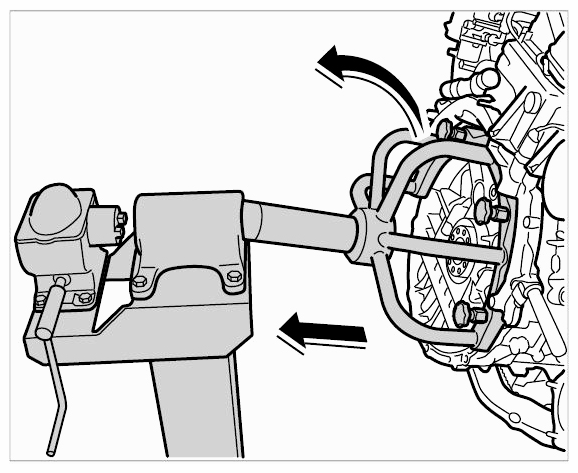

Fig 1: Installing Engine Carrier On Engine
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

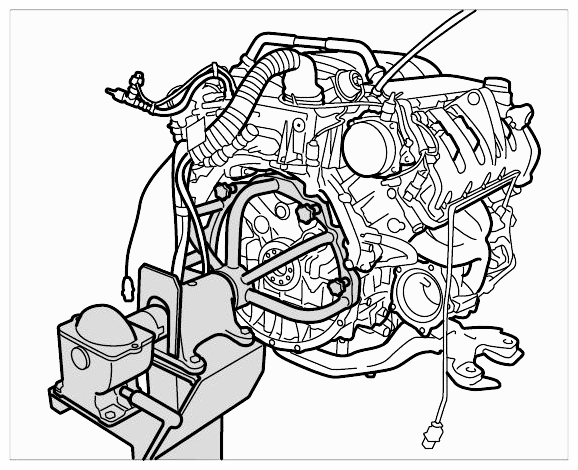

Fig 2: Identifying Crankcase On Engine Support
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Move engine in front of the engine support (assembly support) using the workshop crane and guide in with the help of a second worker. Raise engine so that the engine can be eased in horizontally. →

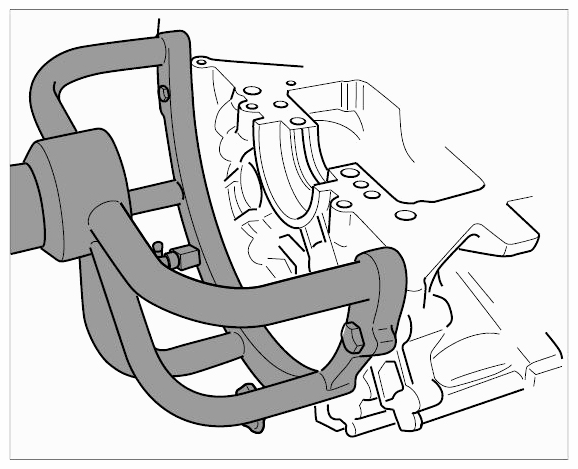

Fig 3: Moving Engine In Front Of Engine Support (Assembly Support) Using Workshop Crane
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Secure engine on assembly support. →

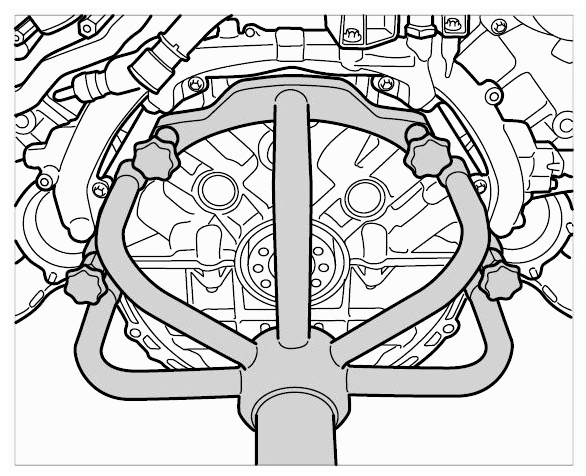

Fig 4: Securing Engine On Assembly Support
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
