Old Version Without Supplementary Set

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

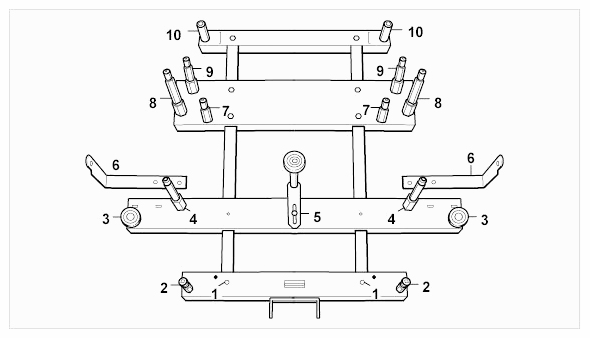

Fig 1: Identifying Complete Structure Of Base Carrier - Old Version

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

2, 5 and 8 - Not used for removing engine!

1 - Screw in mounting mandrel for front-axle carrier at the front (instead of "2")

Information

For the Cayenne S Diesel (V8), it may be necessary to convert the engine/transmission mounting WE 1206!
