New Version with supplementary set

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

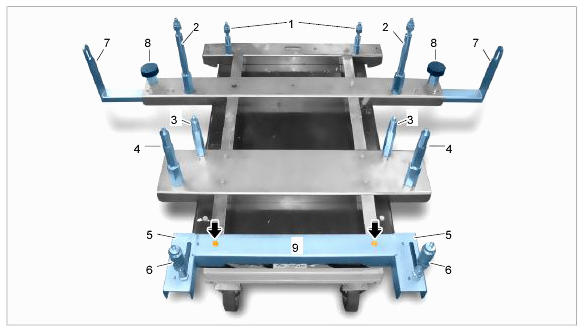

Fig 1: Identifying Complete Structure Of Base Carrier - New Version
G09408396Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Mounting mandrel for front front-axle carrier
  2. Mounting mandrel for engine carrier
  3. Mounting mandrel for rear front-axle carrier
  4. Mounting mandrel for centring in the body.
  5. Position of mounting mandrel on transmission cross member
    • Cayenne Diesel/Hybrid
    • Cayenne/S/GTS/Turbo/Turbo S
  6. Position of mounting mandrel on transmission cross member
    • Cayenne S Diesel
  7. Bracket for wheel carrier
  8. Mounting for lower wishbone
  9. Supplementary set

arrows  - Nuts and screws

  1. Convert engine/transmission mounting.
    1. 1.1. Unscrew nuts -arrows -  .
    2. 1.2. Remove nuts and screws.
    3. 1.3. Remove old cross member and replace it with new cross member -9-  .
    4. 1.4. Screw in and tighten screws and nuts.
