Removing the starter

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Voltage peaks

Risk of damage to loads or to the control unit

Disconnect the battery before removing the component or control unit.

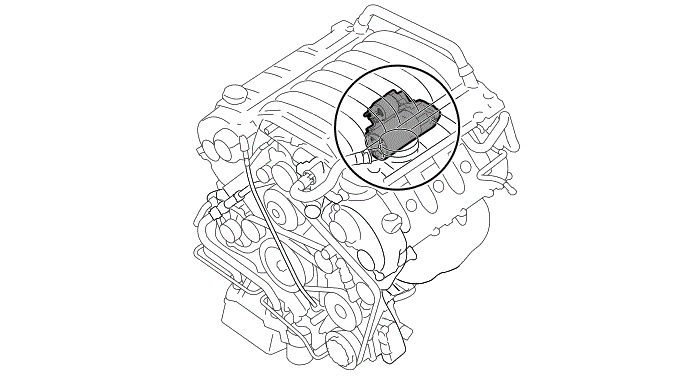

Fig 1: Installation Position Of Starter

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

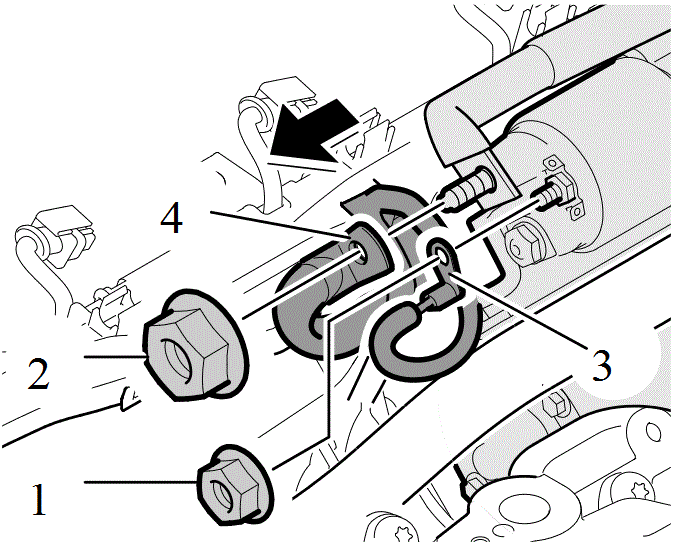

Unscrew fastening nuts -1 and 2- on the starter and remove lines -3 and 4- (-arrow-).

Fig 2: Loosening Fastening Nuts On Starter
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

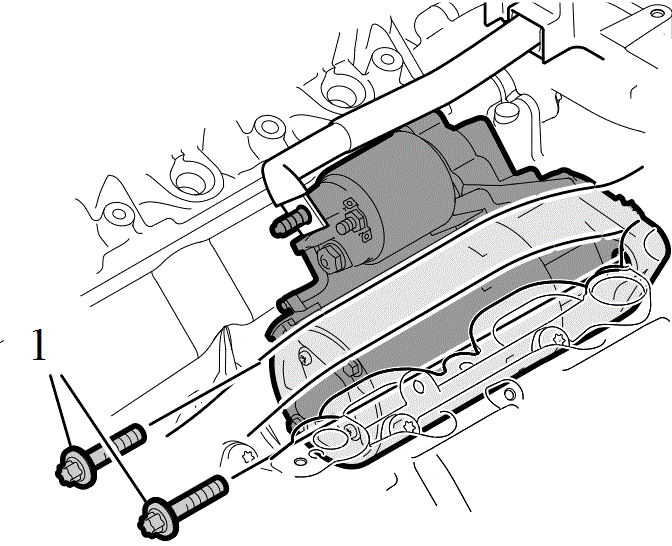

Unscrew the two fastening screws -1-.

Fig 3: Fastening Screws For Starter
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove the starter.

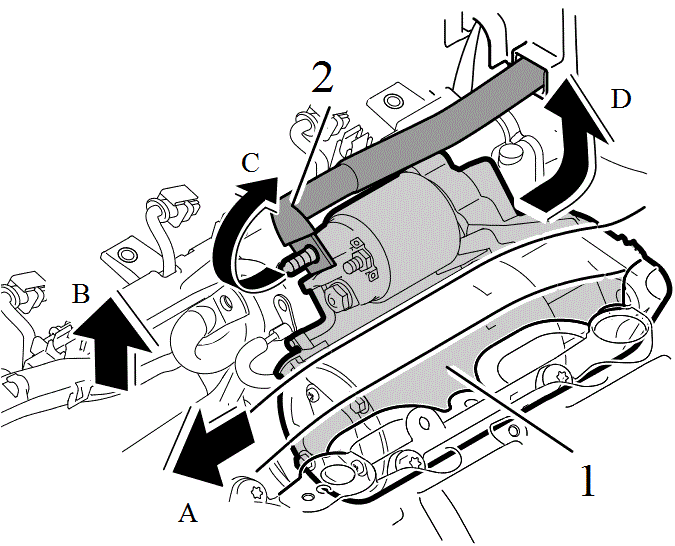

1. Pull starter -1- towards the front in direction of travel -arrow A- and lift it up -arrow B-.
2. Remove line -2- (-arrow C-).
3. Lift the starter -1- up and remove it -arrow D-.
Fig 4: Removing Starter
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
