Installing the starter

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Install the starter.
1. Insert the starter -1- from above -arrow A-.
2. Fit line -2- (-arrow B-).
3. Lower starter -1- (-arrow C-) and push into the engine housing -arrow D-.

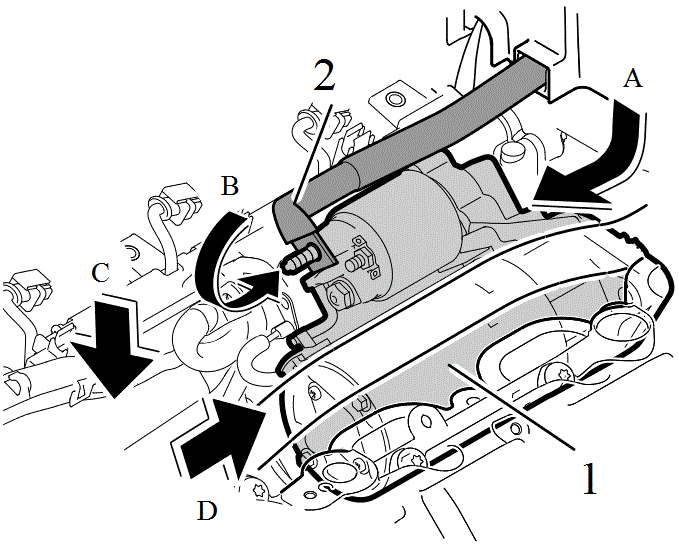

Fig 1: Installing Starter
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screw down starter with the fastening screws -1-. → Tightening torque: 45 Nm (33 ftlb.)+8 Nm (+6 ftlb.)

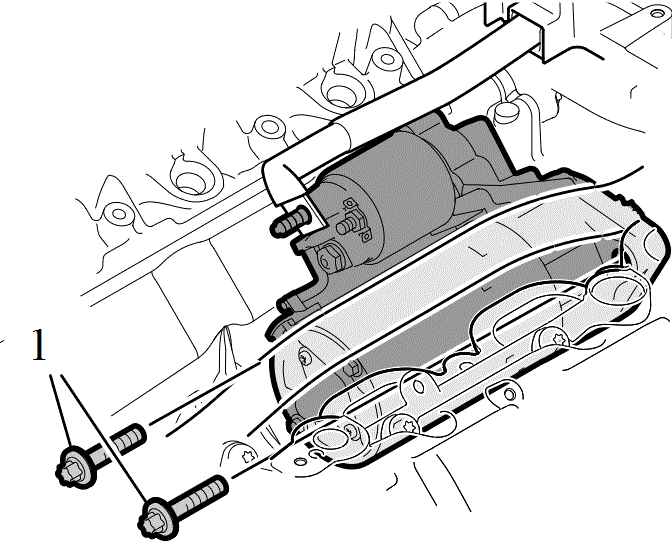

Fig 2: Fastening Screws For Starter

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

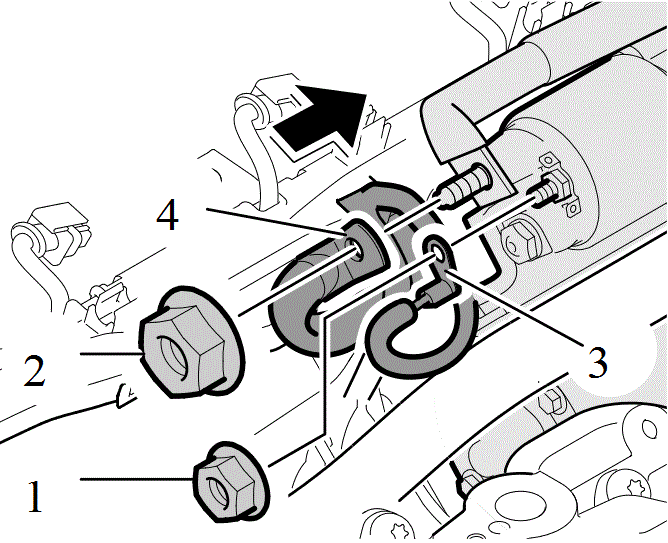

Fig 3: Securing Electric Lines To Starter

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Position lines -3 and 4- on starter -arrow- and screw down with the fastening nuts -1 and 2-. → Tightening torque: 18 Nm (13 ftlb.), → Tightening torque: 6.5 Nm (5 ftlb.)
