Principle Of Operation Of Central Venting

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

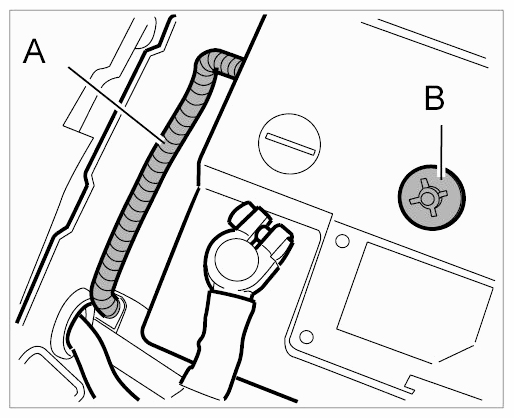

Fig 1: Identifying Central Venting

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

State-of-the-art batteries have central venting -A- .
The gas generated during charging emerges centrally through an opening on the upper cover side. The backfire protection is integrated at the same position, which prevents the ignition of the combustible gas present in the battery.
For batteries with a hose/pipe -A- for central venting, check that the hose is not disconnected or pinched. Only then can the battery be freely vented.

Fig 2: Identifying Central Venting
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
