Checking Acid Level

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Switch ignition off and remove ignition key.
  2. Move front left seat back and up as far as possible. Move backrest fully forward.
  3. Disengage front trim panel at the rear -Arrow A-  , then unclip it by pulling it forward -Arrow B-  .

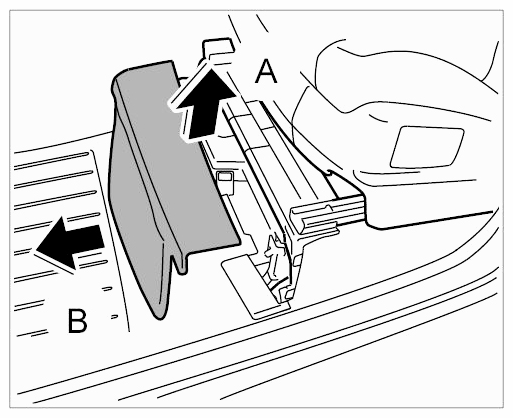

    Fig 1: Unclipping Trim Panel From Front Seat Frame
    G09410312Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Unclip the right and left carpet trim -Arrows-  .

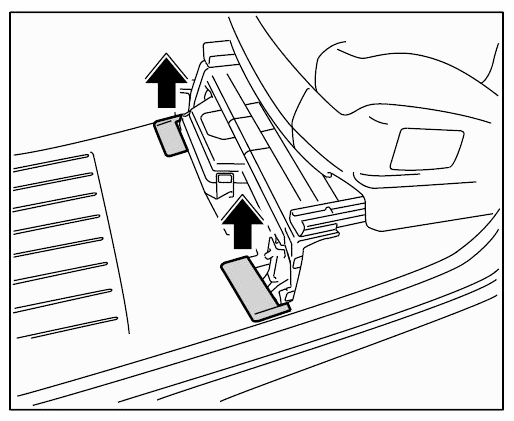

    Fig 2: Unclipping Carpet Trims
    G09410313Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  5. Unscrew the two fastening screws -1-  .

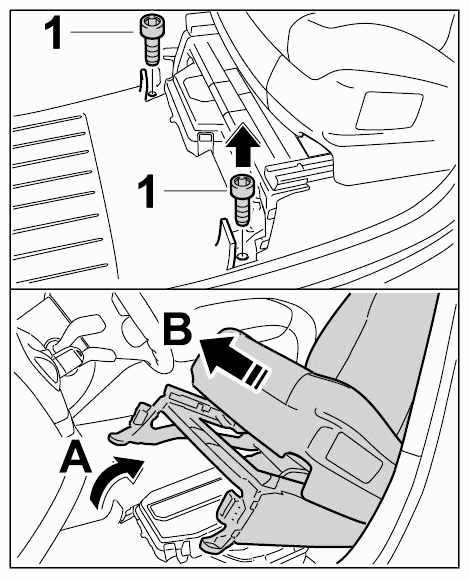

    Fig 3: Loosening Seat Fastening Screws
    G09410314Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  6. Fold the seat back as far as possible -Arrow A-  . With the seat folded, move it forward again using fore/aft adjustment -Arrow B-  .
  7. Open the four tension hooks on the battery box cover using a screwdriver.

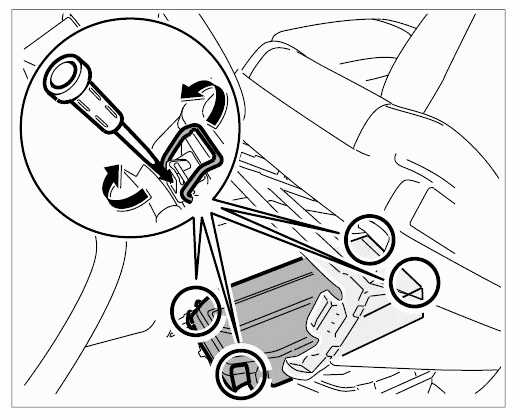

    Fig 4: Opening Battery Box Cover Using Screwdriver
    G09410315Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  8. Unclip wire harness for seat at the battery box.
  9. Remove battery box cover with vent duct.
