WM 2706IN External Power Connection, Jump Lead Starting (All Models): Information

Information

• If the battery is flat, jump leads can be used together with the battery of another vehicle to start the car or to supply external power to the vehicle.

Both batteries must be 12 V batteries.

The capacity (Ah) of the battery supplying the power must not be significantly lower than that of the flat battery.

→ Route the jump leads so that they do not become entangled in moving parts in the engine compartment.

→ There must be no contact between the vehicles.

The flat battery must be connected properly to the vehicle electrical system.

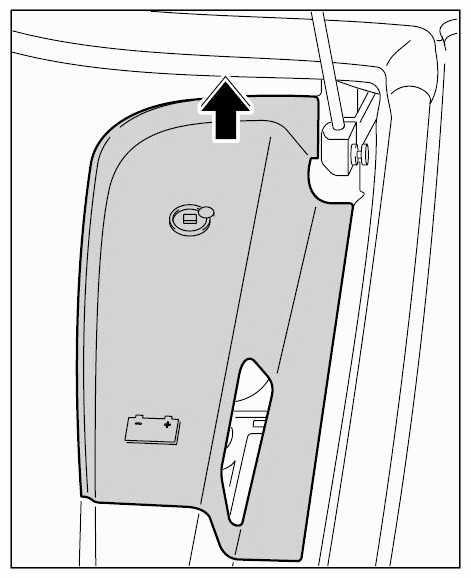

1. Remove cover for jump lead starting terminal.
   Fig 1: Removing Cover From Jump Lead Starting Terminal

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

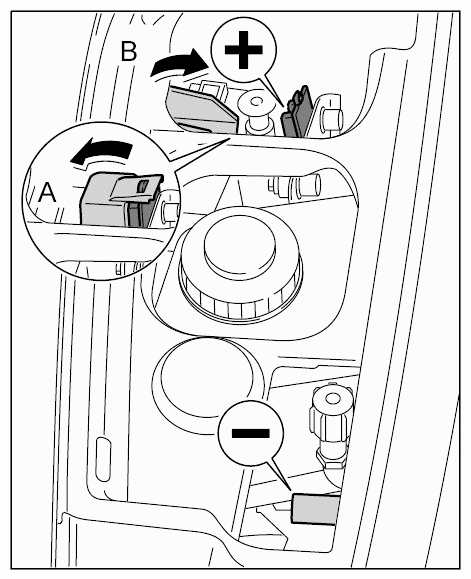

2. Open protective cover on the positive terminal -+-  for jump lead starting -Arrow A-  .
   Fig 2: Opening Protective Cover On Positive Terminal For Jump Lead Starting

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Connect the positive cable to the positive terminal for jump-lead starting -+-  , then to the positive terminal of the battery supplying the power.
4. First, connect the negative cable to the negative terminal of the battery supplying the power, then to the ground point for jump-lead starting - - -.
5. Have the engine of the vehicle supplying the power run at a higher speed.
6. Start engine. Do not spend longer than 15 seconds trying to start the vehicle with the jump leads - after 15 seconds have elapsed, wait for at least one minute.
7. Disconnect the two jump leads in reverse sequence when the engine is running.
8. Close protective cover -Arrow B-  .

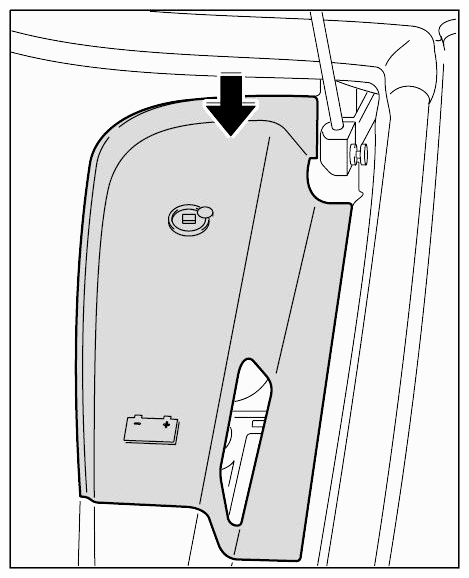

9. Position the cover.
   Fig 3: Installing Cover On Jump Lead Starting Terminal

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
