Preliminary Work

Information

No loads (e.g. opening doors, switching on light/radio, etc.) may be activated while the vehicle is jacked up and raised on the lifting platform.

The time is long enough for the battery to rest for a few minutes.

Information

Before checking the battery with a battery tester, the voltage at the battery must remain static for a short time.

The described sequence must be followed to ensure this rest period is observed.

1. Switch off all loads and remove ignition key.
2. Park the vehicle on the lifting platform.
3. Switch off lights, switch off ignition and remove ignition key.
4. Move front left seat back and up as far as possible. Move backrest fully forward.

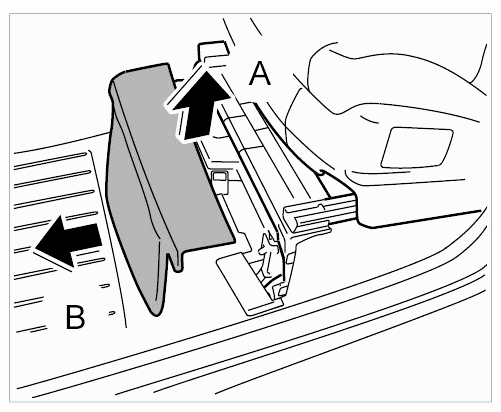

5. Disengage front trim panel at the rear -Arrow A-  , then unclip it by pulling it forward -Arrow B-  .
   Fig 1: Disengaging Front Trim Panel At Rear

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

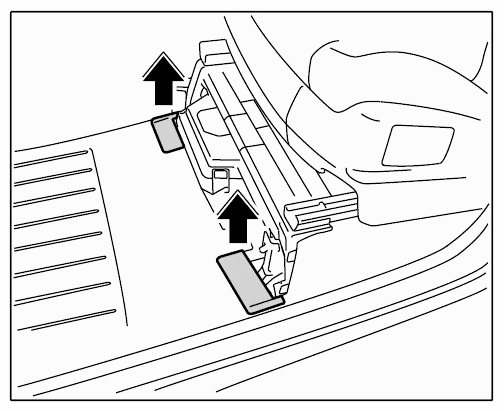

6. Unclip the right and left carpet trim -Arrows-  .
   Fig 2: Unclipping Right And Left Carpet Trim

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

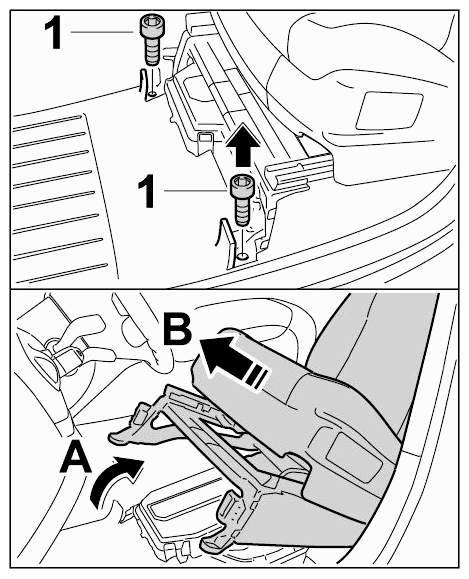

7. Unscrew the two fastening screws -1-  .
   Fig 3: Loosening Seat Fastening Screws

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
8. Fold the seat back as far as possible -Arrow A-  . With the seat folded, move it forward again using fore/aft adjustment -Arrow B-  .

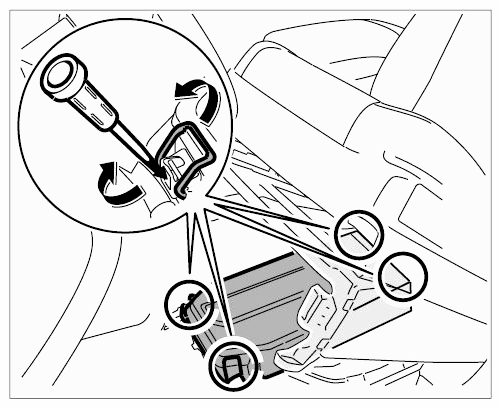

9. Open the four tension hooks on the battery box cover using a screwdriver.
   Fig 4: Removing Battery Box Cover Hooks Using Screwdriver

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
10. Unclip wire harness for seat at the battery box.
11. Remove battery box cover with vent duct.
