Vehicle Height (Vehicle Height Check) - Rear Axle

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

The measurement is made from the wheel contact area to the bottom edge of the side member of the suspension sub-frame -A- (in front of drain bore at connection point of control arm to suspension sub-frame).

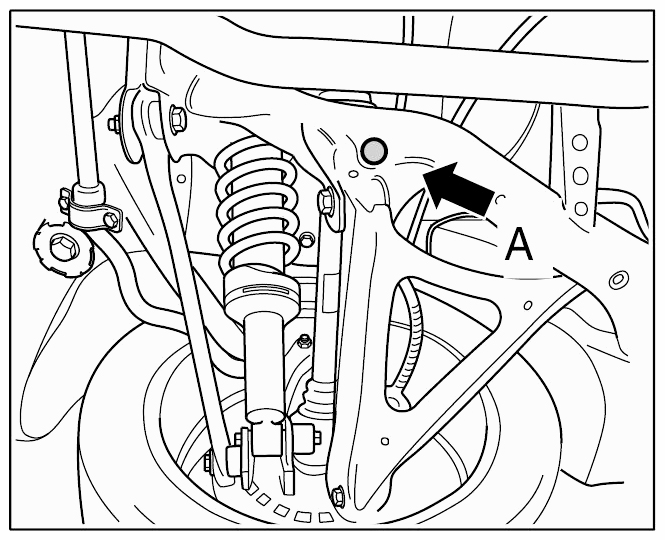

Fig 1: Identifying Measuring Point For Vehicle Height - Rear Axle

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
