Vehicle Height (Vehicle Height Check) - Front Axle

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

The measurement is made from the wheel contact area to the bottom edge of the side member -A-  of the front axle suspension sub-frame (between camber and caster eccentric).

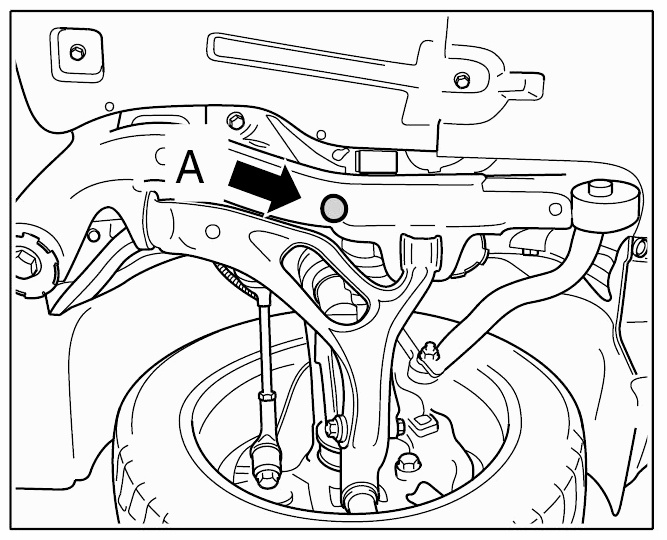

Fig 1: Identifying Measuring Point For Vehicle Height - Front Axle
G09419444Courtesy of PORSCHE CARS NORTH AMERICA, INC.
