Installing Spare Wheel Mount (Frame)

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Position the spare wheel mount -1- on the vehicle with the help of an assistant.
Push the plug connection -4- together until the locking lug -arrow A- is felt to engage.

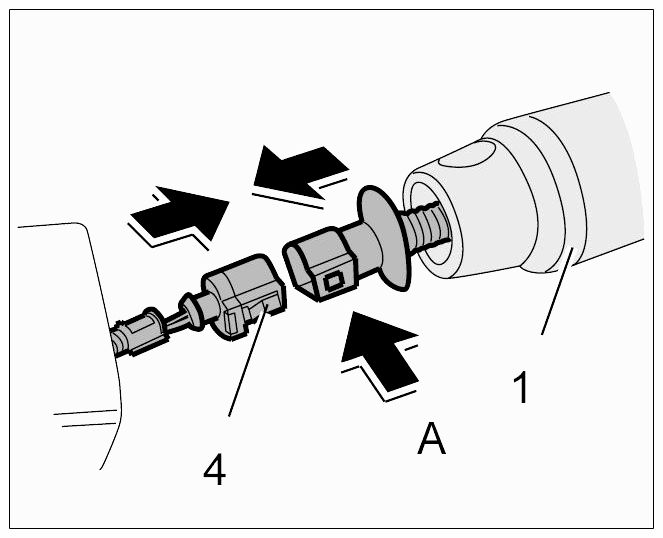

Fig 1: Pushing Plug Connection Together Until Locking Lug
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Push the plug connection -4- into the spare wheel mount -1- until the sealing grommet -5- engages.

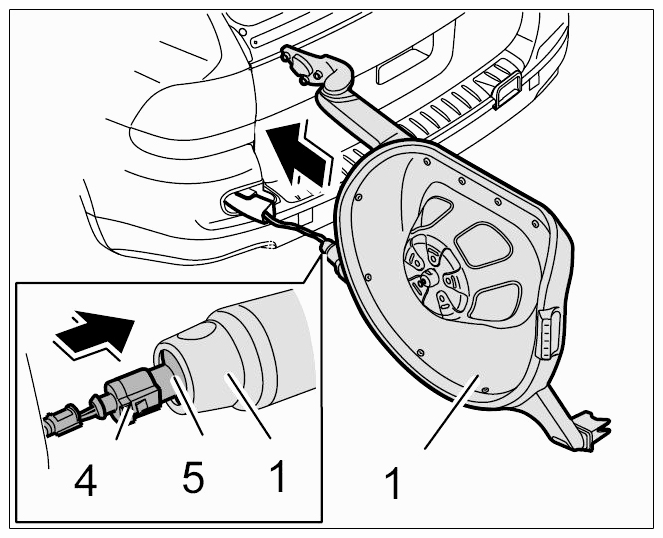

Fig 2: Pushing Plug Connection Into Spare Wheel Mount
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Guide spare wheel mount -1- into the bottom mounting.
Screw in fastening screws -3- on the top mounting of the spare wheel mount -1- and tighten to the specified torque. → Tightening torque: 24 ft lbs.+/-2 ft lbs.

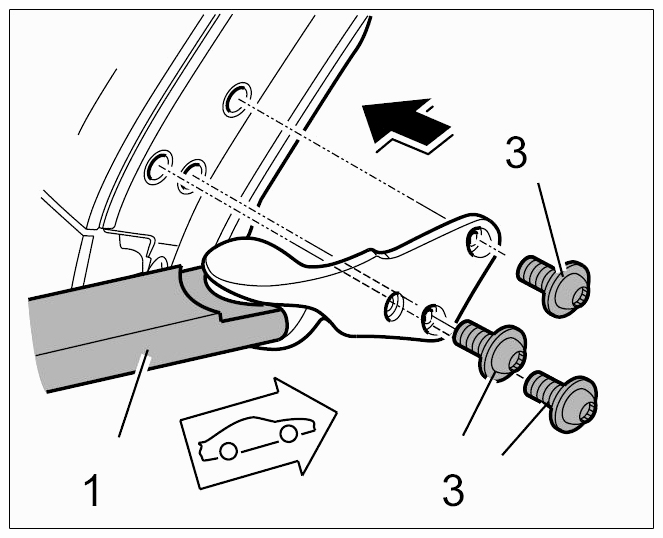

Fig 3: Guiding Spare Wheel Mount Into Bottom Mounting
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screw in clamping screws -2- on the spare wheel mount -1- and tighten to the specified torque. → Tightening torque: 52 ft lbs.+/-2.5 ft lbs.

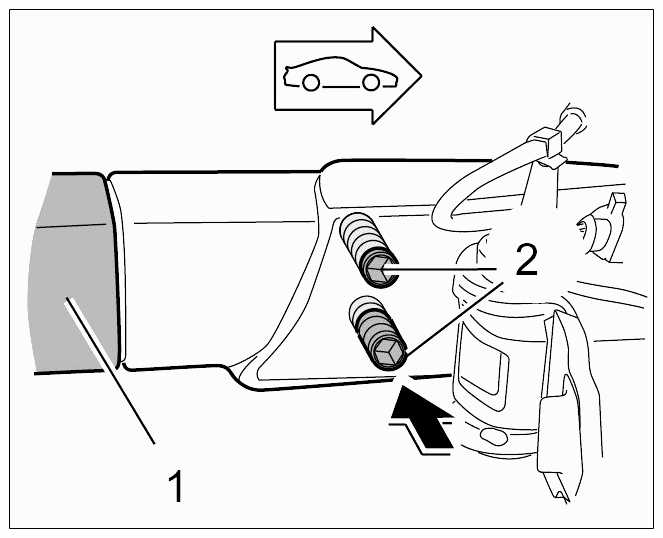

Fig 4: Clamping Screws On Spare Wheel Mount
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Mount the spare wheel.
Information
- A function test or spare wheel mount adjustment can only be performed with the spare wheel mounted.
Swivel the spare wheel holder with spare wheel mounted to the vehicle and engage in lock. Adjust the holder setting if necessary.
1. 8.1. Unclip cover -6- .
2. 8.2. Unscrew fastening screws -7- .
3. 8.3. Move holder -8- until it engages correctly in the lock.
4. 8.4. Tighten fastening screws -7- to the correct tightening torque. → Tightening torque: 24 ft lbs.+/-2 ft lbs.
5. 8.5. Clip in cover -6- .

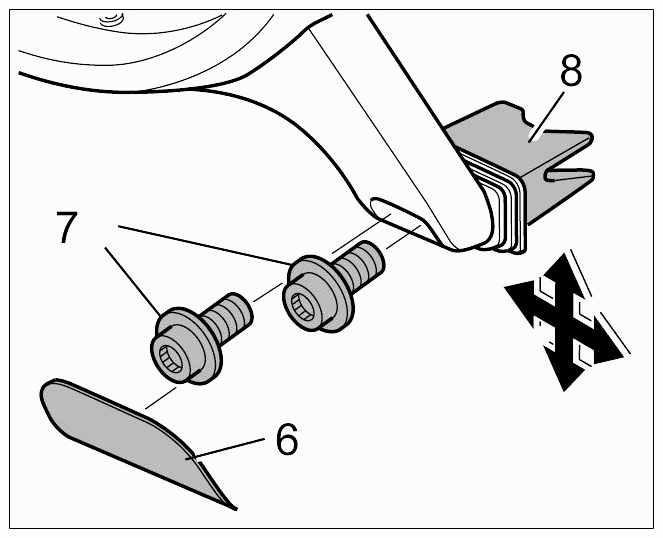

  Fig 5: Adjusting Holder Setting
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
