Removing Tire Pressure Monitoring (TPM) Antenna

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

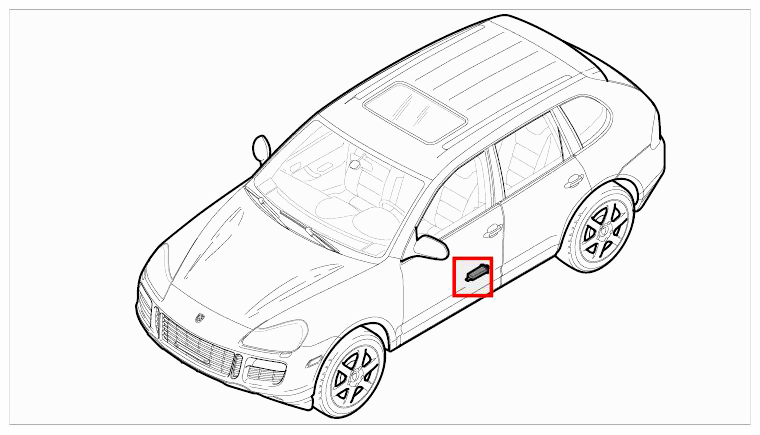

Fig 1: Identifying Installation Position Of Tire Pressure Monitoring Antenna

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

The antenna for the Tire Pressure Monitoring (TPM) system is located on the underside of the vehicle on the side member.

Information

For offroad package only.

Remove cap.
1. 1.1. Unscrew fastening screws -1- from the clip nuts -3- .
2. 1.2. Remove cap -2- (-arrow- ).

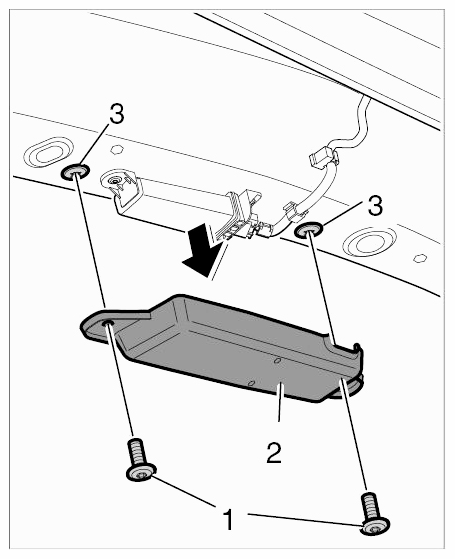

  Fig 2: Removing Cap
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove TPM antenna.
1. 2.1. Release connector -1- (-arrow A- ) and pull it off -arrow B- .
2. 2.2. Unscrew fastening screws -2- and remove TPM antenna -3- (-arrow C- ).

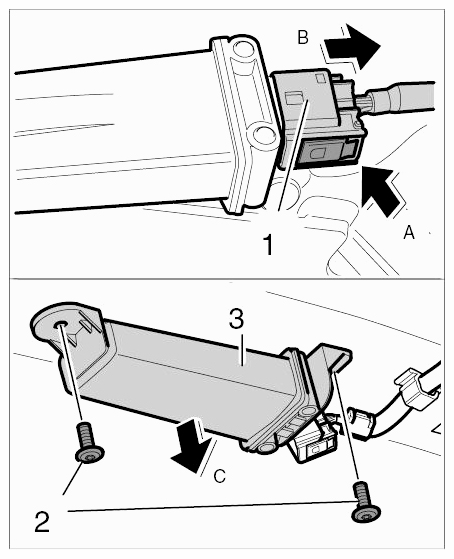

  Fig 3: Removing TPM Antenna
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove support for TPM antenna.
1. 3.1. Release support -1 and 2- at the locking tabs -arrows A- and remove from the TPM antenna -2- (-arrows B- ).

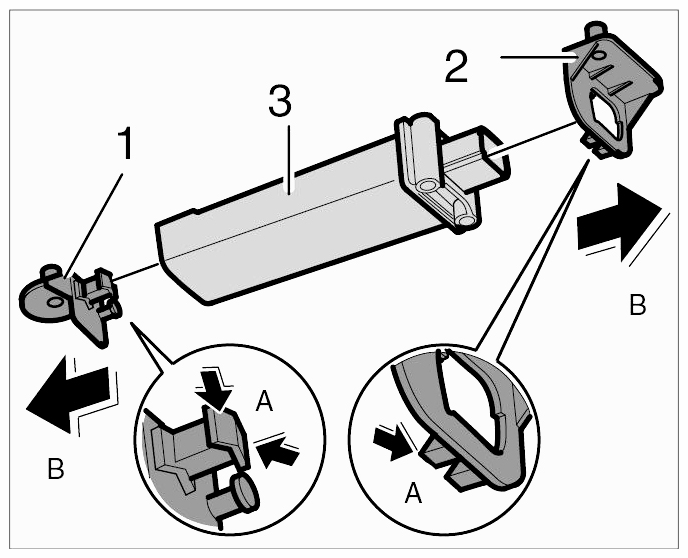

  Fig 4: Removing Support For TPM Antenna
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
