Installing Antenna For Tire Pressure Monitoring (TPM)

Information

Before installing the antenna, visually check the antenna and plug connection with regard to the following points:

• Damage to the housing.
• Damage to the contacts on the antenna.
• Damage to the connector and contacts on the vehicle wire harness.
• Dirty contacts.

If the antenna is damaged, replace it.

If the wire harness, connector or contacts are damaged, repair them in accordance with the relevant safety instructions using the Repair kit for Cayenne wire harnesses NR.155-2.

If the contacts are dirty, clean them.

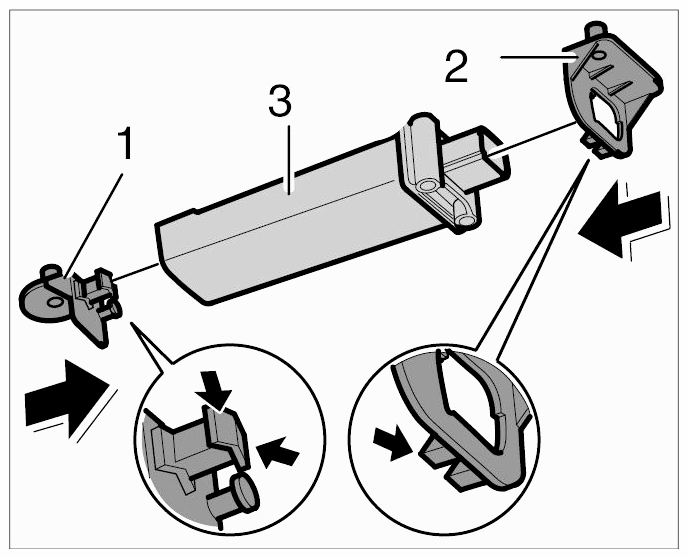

1. Install holder for TPM antenna.
   1. 1.1. Push holder -1 and 2-  onto the TPM antenna -3-  (-arrows-  ) until the locking tabs -arrows-  engage securely.
      Fig 1: Installing Holder For TPM Antenna

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

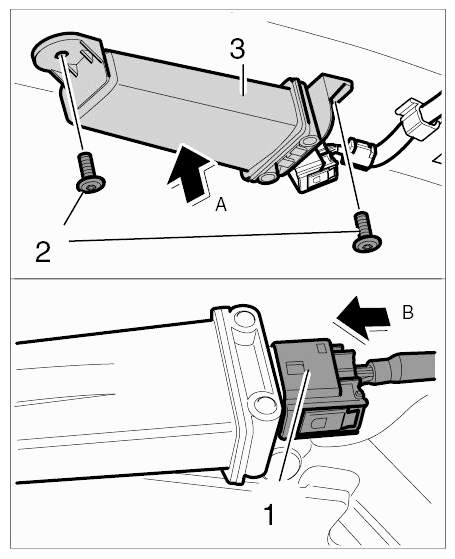

2. Install TPM antenna.
   1. 2.1. Position TPM antenna -3-  on the body -arrow A-  and screw down with the fastening screws -2-  .
   2. 2.2. Press in connector -1-  (-arrow B-  ) until the connector -1-  engages securely.
      Fig 2: Installing TPM Antenna

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Information

      For offroad package only.

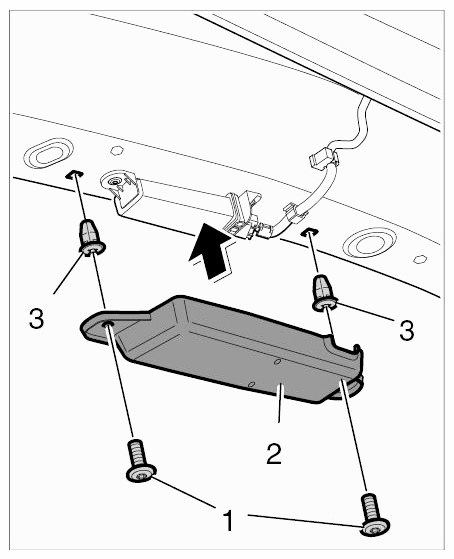

3. Install cap.
   1. 3.1. Check clip nuts -3-  , replace if necessary.
   2. 3.2. Position cap -2-  (-arrow-  ) and screw down with the fastening screws -1-  . → Tightening torque: 2 Nm (1.5 ft lbs.)
      Fig 3: Installing Cap

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
