Mounting Wheel On Vehicle
WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

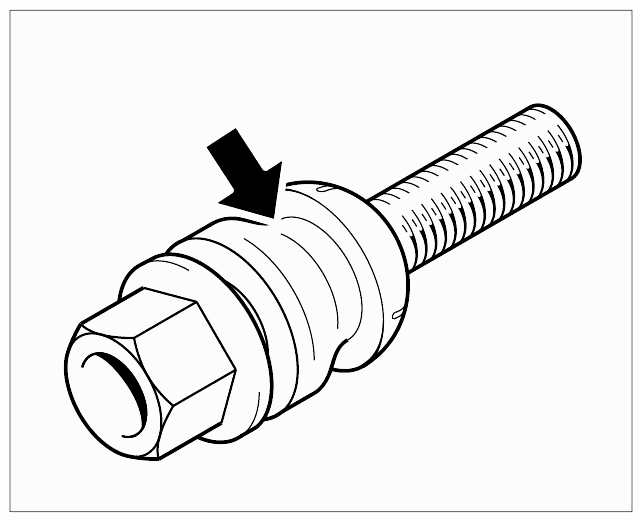

The wheels of the Cayenne are secured with → see Fig 1 standard wheel bolts M14 x 1.5 x 51.
Do not confuse the Cayenne wheel bolts with the sports car wheel screws (911 and Boxster)!
The wheel bolt for the Cayenne has a length of 51 mm, the disc (spherical cap) consists of steel and has a groove on it -arrow- (911 and Boxster without groove and disc consisting of aluminium. Standard length = 45 mm and GT3 = 50 mm).

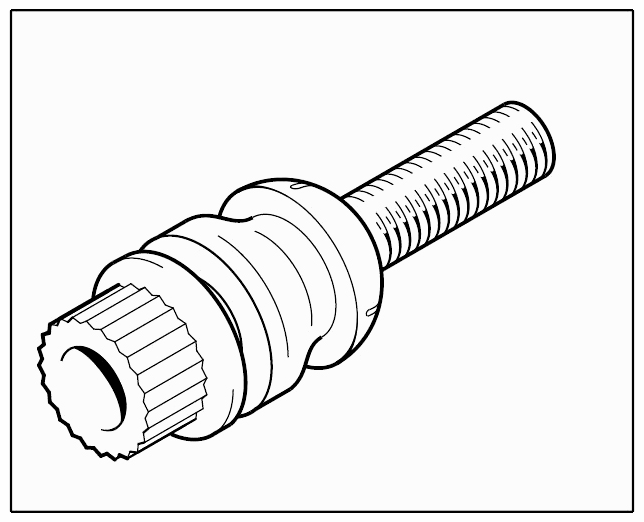

On each wheel there is a → see Fig 2 security wheel bolt (anti-theft protection), which can be released or tightened with the master set T10190 , in which all variants of the lockable wheel bolt system are present.
