Mounting Wheel On Vehicle/Removing Wheel From Vehicle

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

Use suitable commercially available tools (wrench size 19 mm)! Never use an impact bolter to tighten the wheel bolts!
→ see Fig 1 Use assembly aids (threaded pin for mounting wheel) in order to exclude any possibility of heavy contact of the wheel with the brake disc! The assembly aids (threaded pins for mounting wheel) should be obtained from the Porsche Parts Service

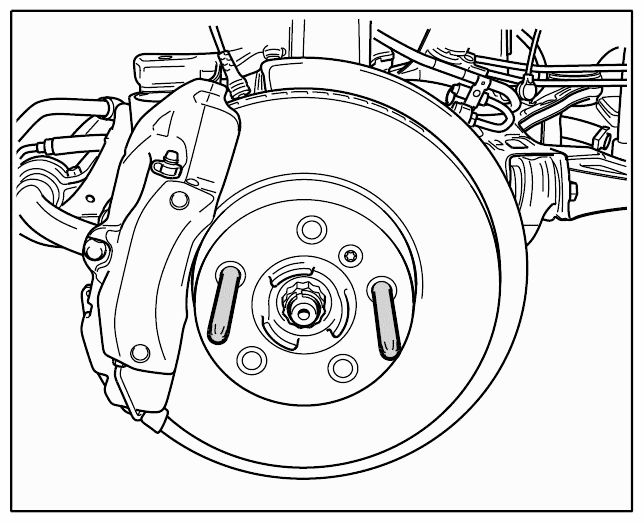

Fig 1: Mounting Wheel On Vehicle
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
For vehicles with Tire Pressure Monitoring (TPM), every Tire set or wheel change must be communicated to the control unit. To do this, always enter the Tire type and Tire size in the instrument cluster menu item "TPM settings". The control unit then stores these values while the vehicle is driving.
The wheel bolt consists of two parts that are permanently joined together! Other wheel bolts must not be used!
Wheel bolts must never be reworked!
Always replace damaged wheel bolts!
This damage includes mechanical damage to the thread, the spherical cap and damage resulting from seizure of the bolt head bearing surface and spherical cap ring! It must be possible to rotate the spherical cap ring on the bolt shank and move it in axial direction.
The wheel bolts and security wheel bolts must not be greased!
Only original Cayenne wheel bolts must be used!
Always observe the specified tightening torque of 160 Nm (118 ft lbs.)!
The wheel mounting trolley can be used to make mounting easier.

Raise the vehicle at the take-up points provided using a lifting platform → WM 4000V0 LIFTING THE VEHICLE (ALL MODELS) .
Before mounting or removing a wheel, screw the → see Fig 2 assembly aids (threaded pins for mounting wheel) instead of two wheel bolts into the wheel hub. During removal only remove the three remaining wheel bolts afterwards and remove the wheel carefully, without touching the brake discs.

Fig 2: Removing Wheel From Vehicle
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Mount wheels using standard Cayenne wheel bolts M14 x 1.5 x 51.
In the case of heavy soiling, clean the wheel bolts and the concavities in the wheel with a lint-free cloth.
Never grease the wheel bolts.
Screw in wheel bolts by hand and then tighten evenly. Start at the top when tightening.
