Balancing Weights

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Type of balancing weights: Adhesive weights as used previously (no special version necessary).

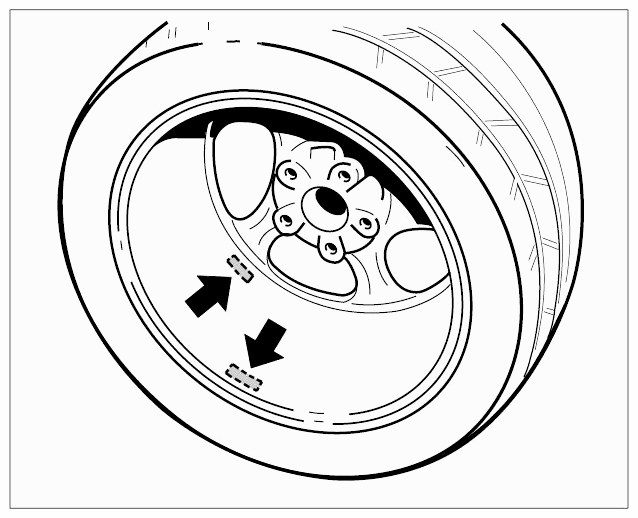

Attach both weights to the inner side -arrows-  .

Fig 1: Locating Balancing Weights
G09419376Courtesy of PORSCHE CARS NORTH AMERICA, INC.
