Checking Rear Light

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

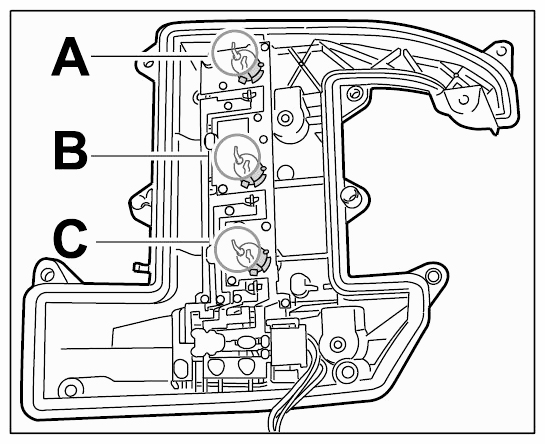

  1. Rear fog light. P 21 W
  2. Direction indicator light. P 21 W
  3. Reverse light. P 21 W
    Fig 1: Overview Of Bulbs
    G09408218Courtesy of PORSCHE CARS NORTH AMERICA, INC.

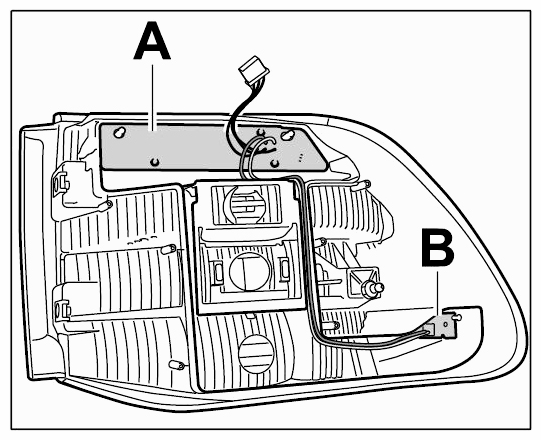

  1. Light bulbs (LED) for rear light and brake light
  2. Light bulb (LED) for side marker light
    Fig 2: Overview Of Light Bulbs
    G09408219Courtesy of PORSCHE CARS NORTH AMERICA, INC.
