Checking Battery Vent Hose Under The Driver's Seat

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Replace the battery box cover carefully. The ventilation channel must be mounted properly.

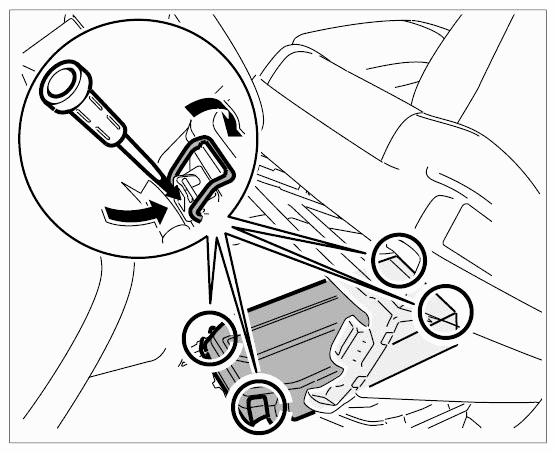

Attach the four tension hooks in the battery case cover and close using the screwdriver.

Fig 1: Closing Tension Hooks In Battery Using Tool
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
WARNING:
Incorrect handling of safety bolts
- Danger of injury
- Loss of torque
→ Always use new fastening screws and nuts following removal.

→ Observe specified tightening torques.

→ Carry out a visual inspection of all re-used parts.

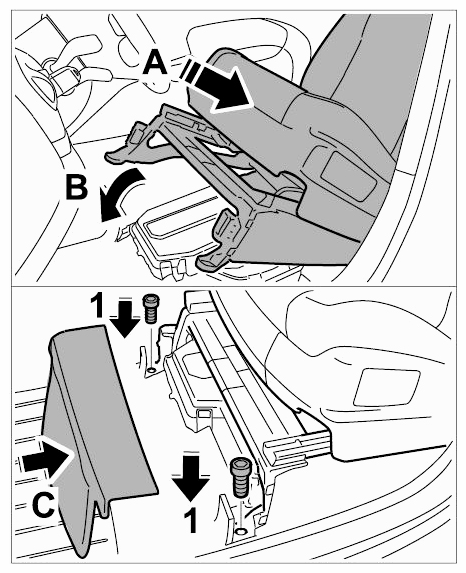

Move the seat in its folded position towards the rear and then tip forward.
Screw in fastening screws -1- and put back the carpet sections. → Tightening torque: 45 Nm (33 ftlb.)

Fig 2: Installing Front Seat Trim
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Clip in the front seat trim (-C-).

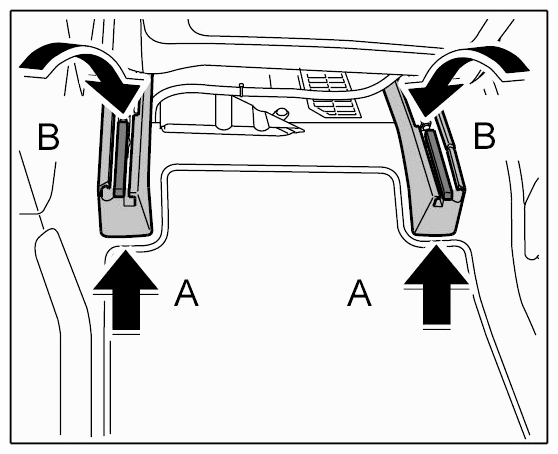

Push rear cover caps onto seat rails -arrows A- and press down the covers -arrows B- until these engage audibly.

Fig 3: Installing Rear Cover Caps

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
