Adjusting The Foot-Operated Parking Brake

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

The rear wheels must be removed to gain access to the adjustment device → Removing and installing wheel .

In the event of unfavourable tolerances, the brake pads may prevent the brake disc from turning freely. If this happens, the brake pads must be (evenly) pressed back a little with the piston resetting fixture (replaces P83) Nr.144 . -direction arrow-!

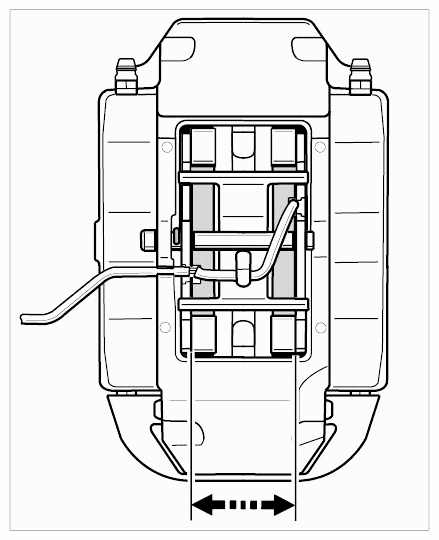

Fig 1: Pushing Brake Pad

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Release the FPB pedal so that the wheels and brake discs can turn freely.
The wheels may still grind slightly even then! If this happens, loosen the rear brake cables by moving them to and fro gently!
Remove rear wheels → Removing and installing wheel .
Adjust brake shoes (on both wheels). To do this, unscrew the plug -arrow- and turn the brake disc with the opening towards the adjustment device position. Using a screwdriver, adjust the adjustment device until the wheel can no longer be turned. Then unscrew by 6 teeth (wheels must be free to turn).

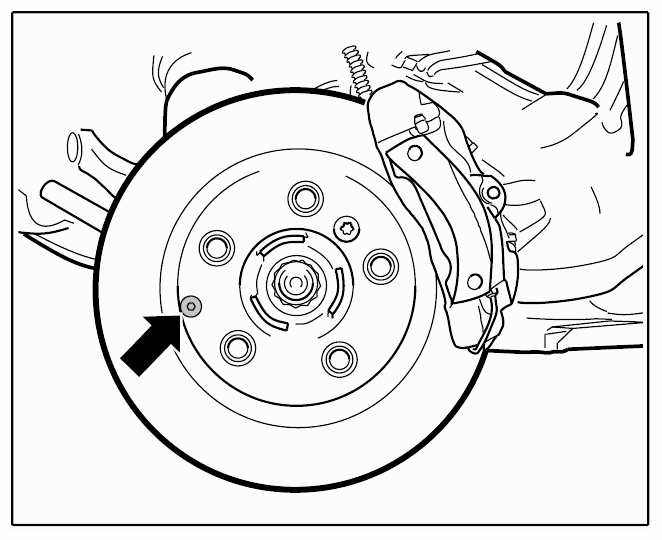

Fig 2: Locating Brake Disc Plug
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Check the free play on the pedal module once again.
Position disc brake pads by operating the brake several times.
Fit rear wheels → Removing and installing wheel .
