Installing Brake Cable

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Insert the → see Fig 1 end of the cable with the hexagon into the Quickfit on the wheel bearing housing. The hexagon in the Quickfit must engage audibly. Ensure a goodl seal.

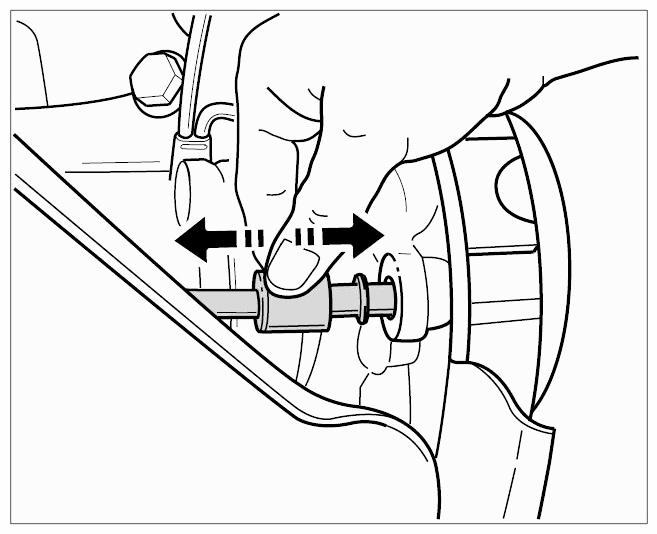

    Fig 1: Inserting Cable Into Quickfit On Wheel Bearing Housing
    G09419691Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Look through the brake disc opening with a small lamp to check that the end of the cable (hexagon) is seated correctly in the Quickfit.
  3. Fit the screw plug on the brake disc.
  4. To fit the brake cable correctly into the guides on the underbody and on the rear axle carrier, the brake cable must be taut. To do this, tug on the brake cable, against the direction of travel, in the cable sleeve area (thickening) on the rear axle carrier. This gives clearance between the brake cable and the cardan shaft.
  5. Perform a function test.
  6. Install cover in the footwell → Installing cover under dashboard .
