Removing Front Brake Cable

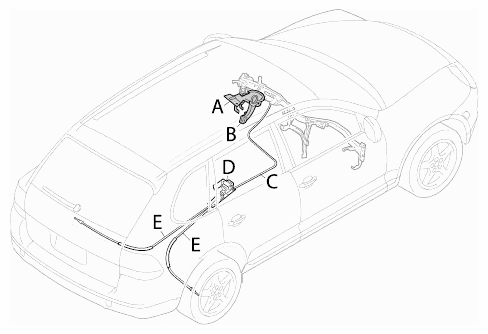

Fig 1: Identifying Front Brake Cable Related Components

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

• Front brake cable means: From the release for the foot-operated parking brake to the deflector under the centre console.
• The actuating pedal for the foot-operated parking brake does not have to be removed to do this.

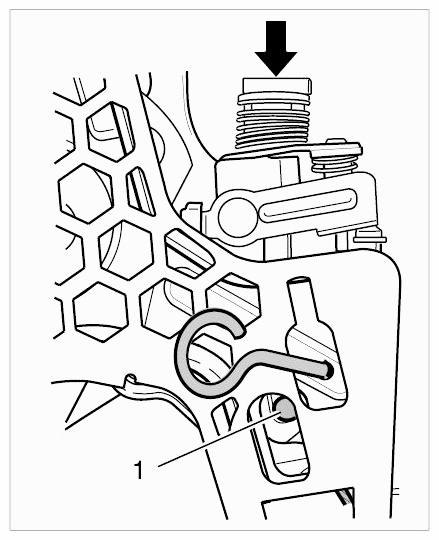

1. Fix the adjustment device using an → see Fig 2 auxiliary pin (max. 3.5 mm Ø). In other words: press the adjustment device together -arrow-  until the assembly bores are covered and the auxiliary pin can be inserted → Removing Pedal For Foot-Operated Parking Brake (FPB)  Only remove the ball head of the brake cable -1-  when the brake cable has been removed from the deflector (centre console).
   Fig 2: Pressing Adjustment Device

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Lift the front carpet (do not bend) and push the rear carpet aside.

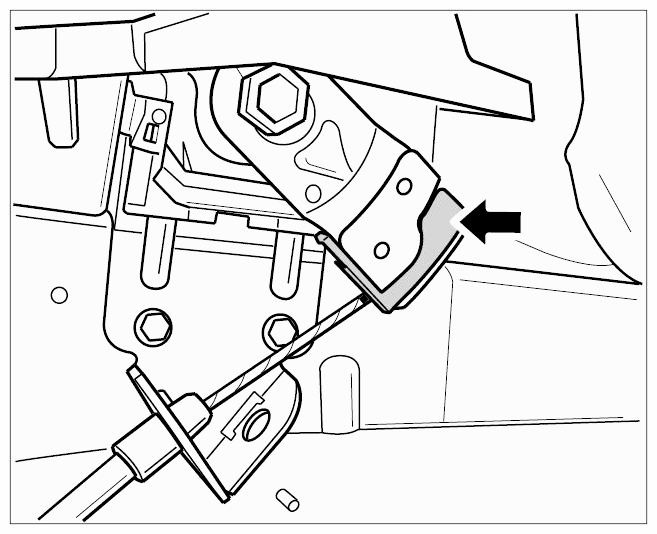

3. Remove securing clip on the deflector -arrow-  .
   Fig 3: Removing Securing Clip On Deflector

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

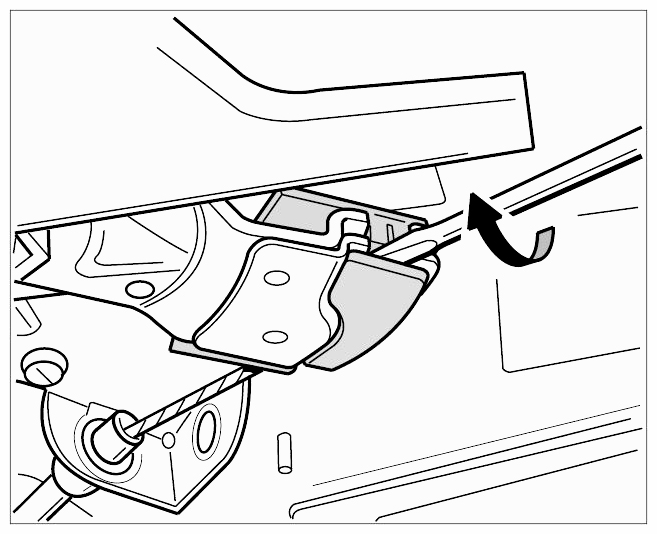

4. Unclip securing clip using a → see Fig 4 screwdriver and remove it.
   Fig 4: Removing Clip Using Screwdriver

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

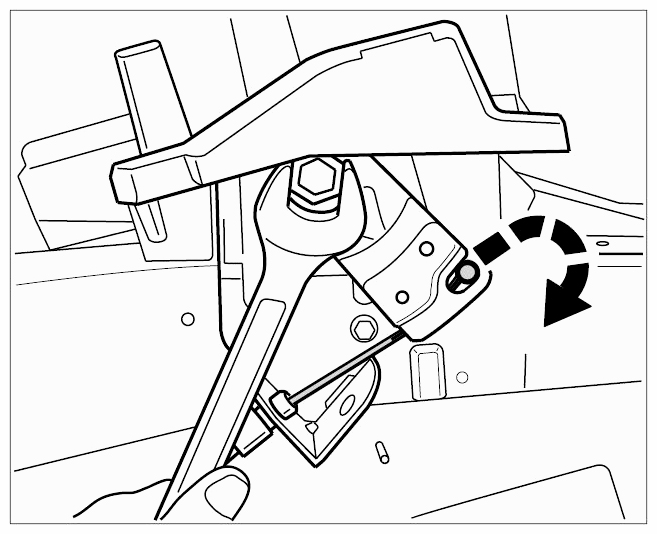

5. Remove the ball head from the latch on the deflector. To do this, → see Fig 5 place an open-ended wrench (a/f 22) on the deflector hexagon and turn it until the end of the cable can be removed (arrow).
   Fig 5: Removing Ball Head From Latch On Deflector

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

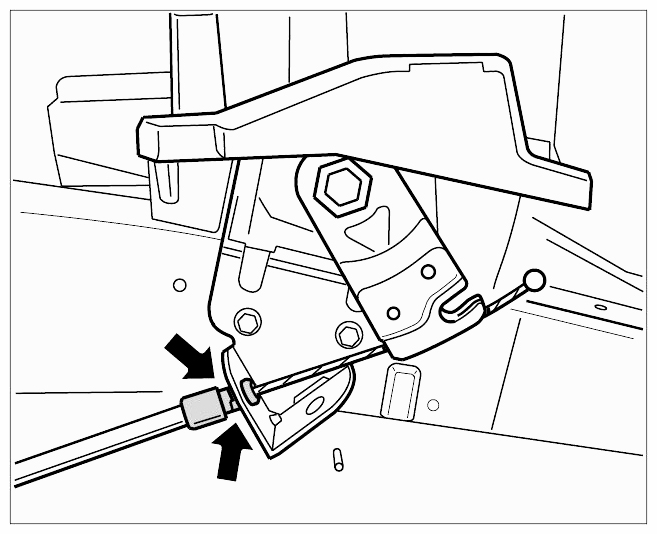

6. To remove the brake cable, press the retaining lugs on the securing clip -arrows-  together and pull it out of the bracket.
   Fig 6: Locating Retaining Lugs On Securing Clip

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
7. Remove the cover of the actuating module.

   Information

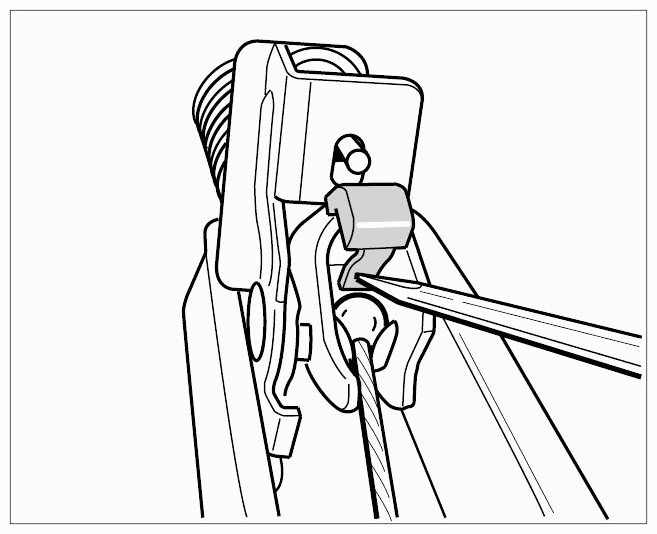

   • The cable retainer on the actuating pedal for the front brake cable cannot be removed and is not available as an individual part. During removal, carefully press the → see  Fig 7  cable retainer back using a small screwdriver.
     Fig 7: Removing Actuating Module Cover

     Courtesy of PORSCHE CARS NORTH AMERICA, INC.

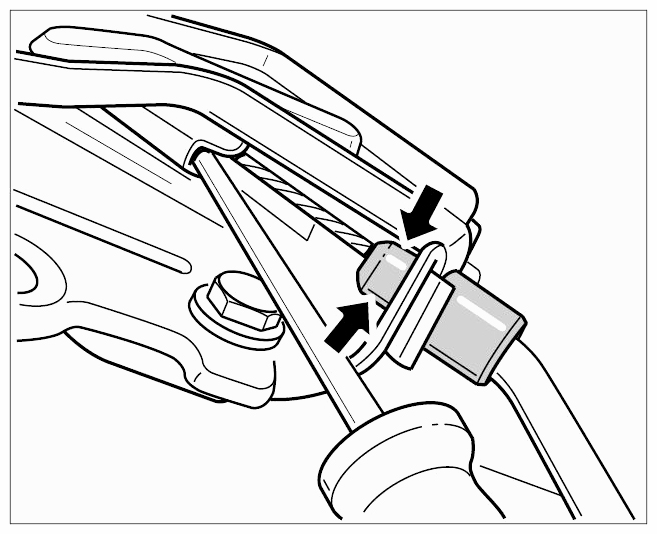

8. Remove the brake cable at the actuating pedal. To do this, press the retaining lugs on the securing clip -arrows-  together and pull the brake cable out of the bracket. Push the ball head out of the latch. Carefully press the securing lug back using a small screwdriver and remove the brake cable.
   Fig 8: Removing Brake Cable At Actuating Pedal

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
9. Remove the brake cable under the wiring harness and under the air guide.
