Replacing Damper For Foot-Operated Parking Brake (FPB)

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

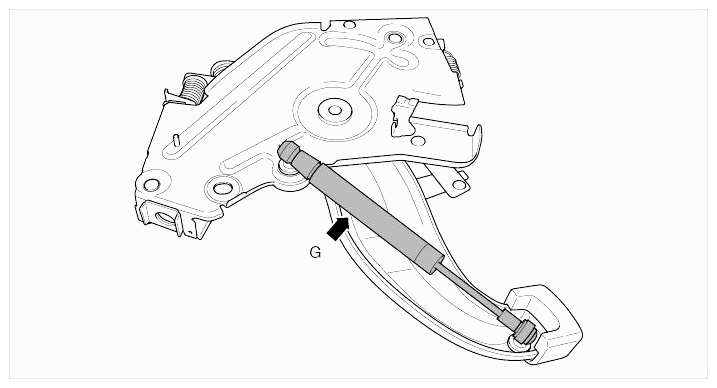

Position of the damper on the foot-operated parking brake (FPB) pedal

Fig 1: Locating Foot-Operated Parking Brake Damper

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

The foot-operated parking brake pedal does not need to be removed in order to replace the damper.

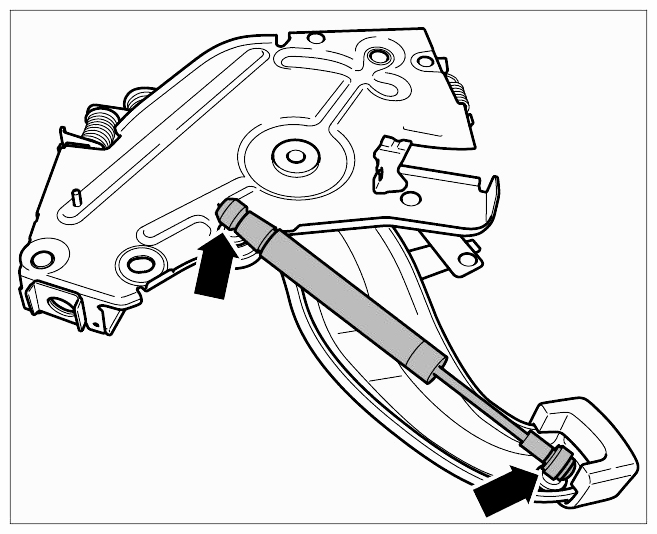

To remove the damper, lift the two clamps -arrows- slightly and pull the damper off the ball pin.

Fig 2: Locating FPB Damper Mounting
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
To install the damper, first fit the clamps at the correct position or check that the clamps are seated correctly. Then fit the damper at the correct position. The mountings must lock with an audible click.

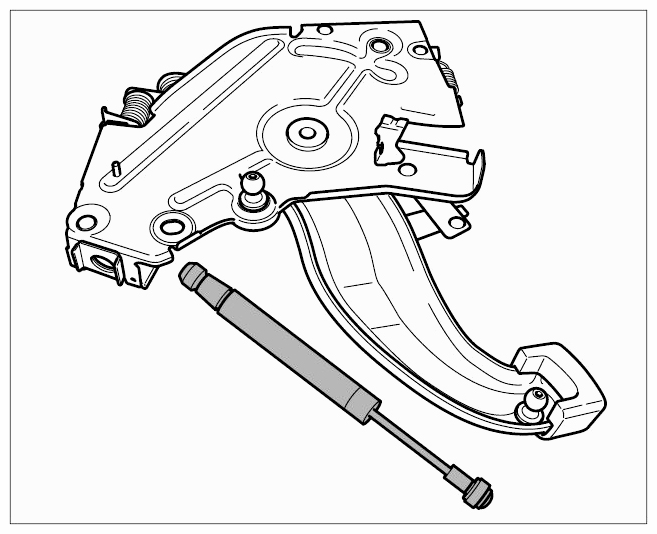

Fig 3: Identifying FPB Damper
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
