Removing PCCB Brake Disc

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove wheel. Use assembly aids (assembly pins) -1-  . → WM 440519 REMOVING AND INSTALLING WHEEL .

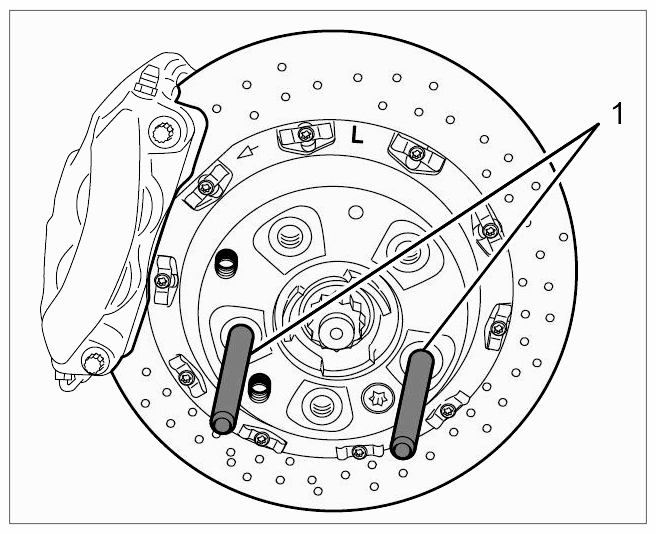

    Fig 1: Identifying PCCB Brake Disc With Rear-Axle Calliper And Assembly Aids 1 (Threaded Bolts For Fitting Wheel)
    G09419616Courtesy of PORSCHE CARS NORTH AMERICA, INC.
