Explanation Of 2-Part Brake Disc

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. The PCCB brake discs consist of two parts on the front and rear axles. The brake disc -1-  is screwed to the brake- disc chamber -2-  with 10 screws (M6) -3-  .

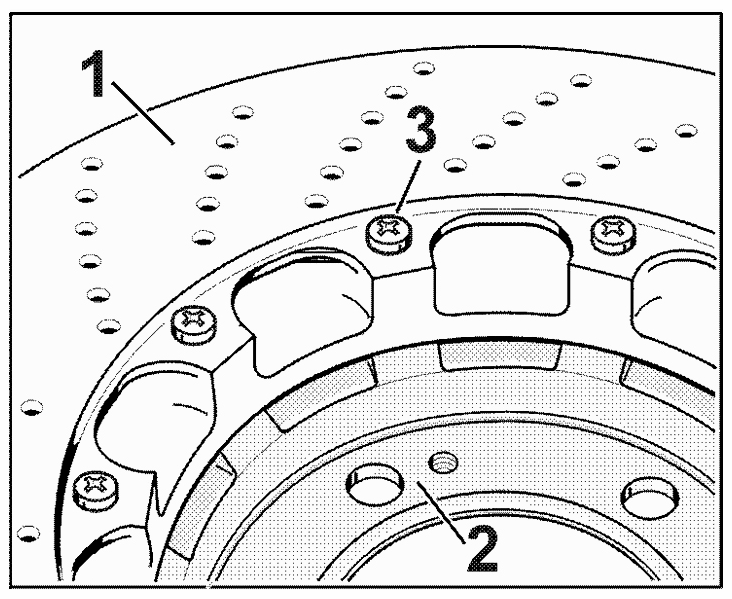

    Fig 1: Identifying PCCB Brake Discs, Chamber And Screws (M6)
    G09419620Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Only the complete brake disc is available as a spare part (disc + brake-disc chamber)!
  3. Do not separate the brake-disc chamber -2-  and brake disc -1-  . In addition, the screws -3-  must not be turned and should not need to be turned. The screws are prevented from turning by compression in the bushing.
  4. It is essential that the tightening torque of the 10 screws is not changed (do not turn the screws) as this will have a negative effect on the sound behaviour.
1 Brake disc
2 Brake-disc chamber
3 Screw (10 ea.)
