Installing Rear Brake Disc

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Do not confuse right and left brake discs during assembly!

Distinguishing characteristic: Part No.! The flat surface of the brake discs is marked with R = right or L = left.

Check that all parts are in perfect condition and replace them if necessary.
Clean the levelling and centring surfaces on the brake disc and wheel hub. Then apply a very thin coat of Optimoly TA to the centring surface on the wheel hub.
Fit the brake disc. Observe tightening torque. → WM 4600TW TIGHTENING TORQUES FOR BRAKE MECHANICS .

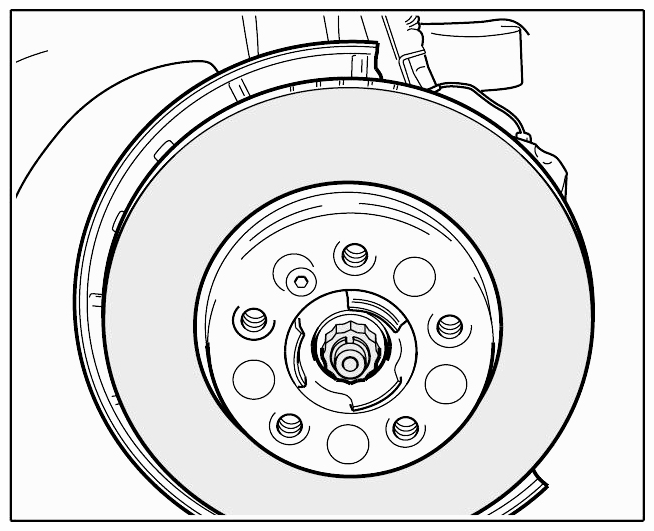

Fig 1: Identifying Brake Disc
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Adjust the brake shoes of the foot-operated parking brake with a → see Fig 2 screwdriver.

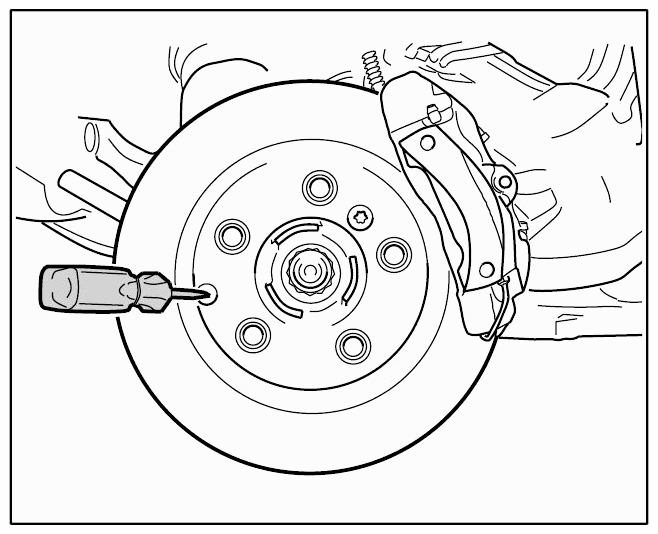

Fig 2: Adjusting Brake Shoes Of Foot-Operated Parking Brake Using Screwdriver
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fit the brake calliper. Replace the brake calliper fastening screws following removal. Observe tightening torque. → WM 4600TW TIGHTENING TORQUES FOR BRAKE MECHANICS .
Position disc brake pads by operating the brake several times.
Check brake fluid level and correct it if necessary. The brake fluid level must be within the → see Fig 3 MIN/MAX marking.

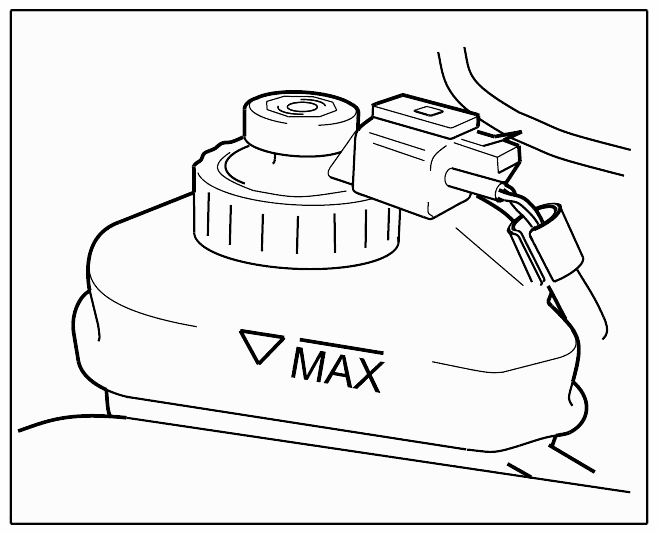

Fig 3: Identifying Brake Fluid Reservoir Marking
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
