Removing Rear Disc Brake Pads

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

The core of the warning contact line must not be left exposed! It does not matter if the insulation is worn!

If necessary, remove a little brake fluid from the expansion tank by suction to prevent overflow when the disc brake pad is pushed back!

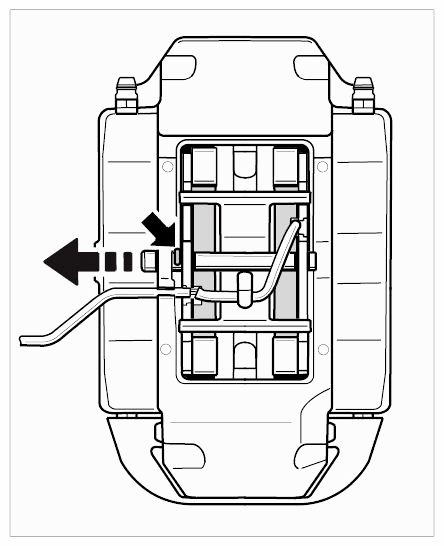

  1. Remove lock (securing clip) -top arrow-  from retaining pin and remove retaining pin -direction arrow-  inwards.
    Fig 1: Removing Retaining Pin
    G09419523Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Remove warning contact line from brake calliper and expanding spring. Remove warning contacts from the brake disc pads.
  3. Remove expanding spring.

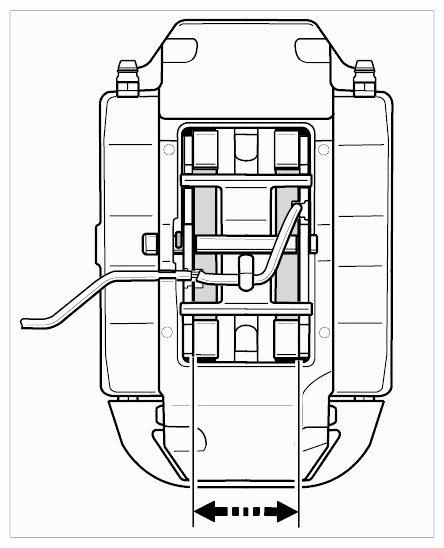

  4. Piston resetting fixture must be fitted on the brake calliper between the disc brake pads in order to push the pads back evenly -arrow-  .
    Fig 2: Pushing Brake Pads
    G09419524Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  5. Remove disc brake pads.
