Removing Pump For Headlight Washer

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

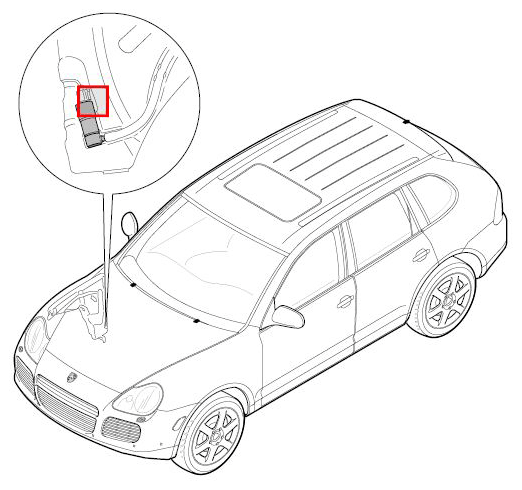

Fig 1: Overview Of Pump For Headlight Washer System
G09415289Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Release the plug -Arrow A-  and pull off -Arrow B-  .

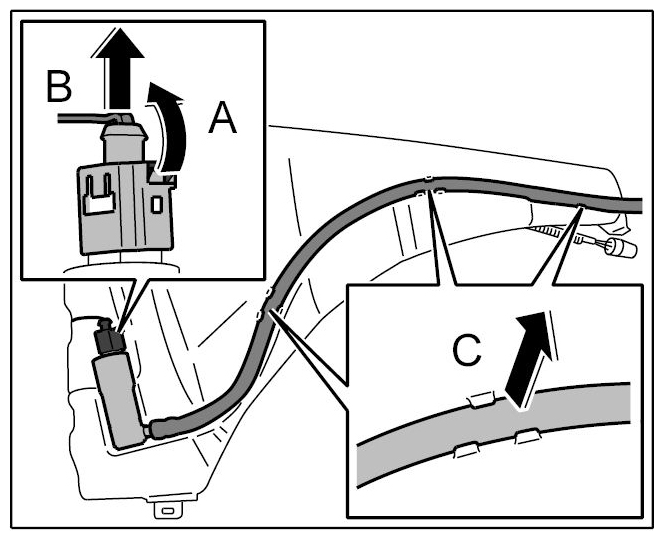

    Fig 2: Pulling Off Plug And Unclipping Hose
    G09415290Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Pull out high pressure hose from retaining tabs on tank -Arrow C-  .
  3. Rotate pump with high-pressure hose -Arrow A-  and pull it out of tank -Arrow B-  .

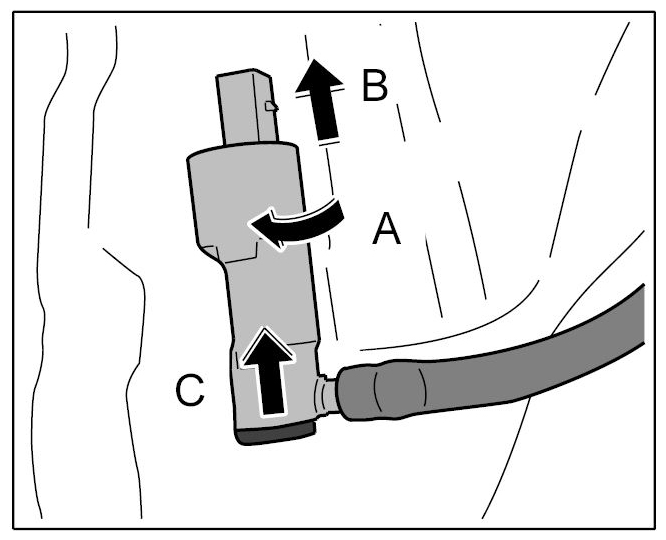

    Fig 3: Removing Pump
    G09415291Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Take out the rubber gasket -C-  from the tank.
  5. Pull hose off the high-pressure pump.
