Installing Pump For Headlight Washer System

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

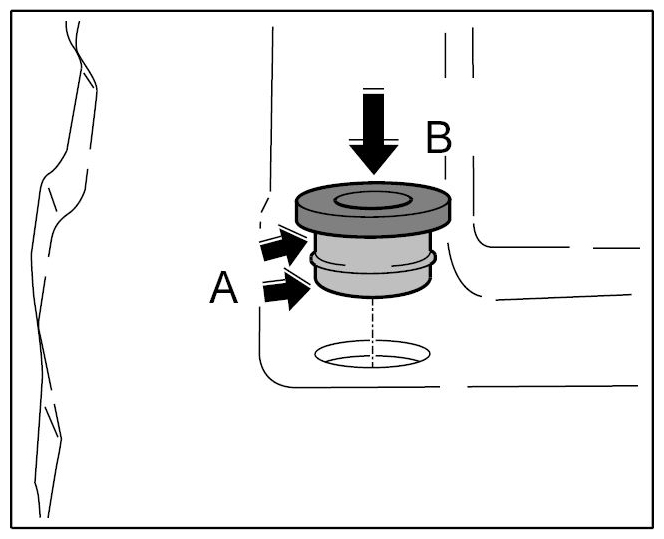

  1. Apply a suitable rubber lubricant (tyre mounting paste) to sealing surface -Arrows A-  and press rubber seal into tank -Arrow B-  until it is felt to engage.
    Fig 1: Fitting Rubber Seal
    G09415292Courtesy of PORSCHE CARS NORTH AMERICA, INC.

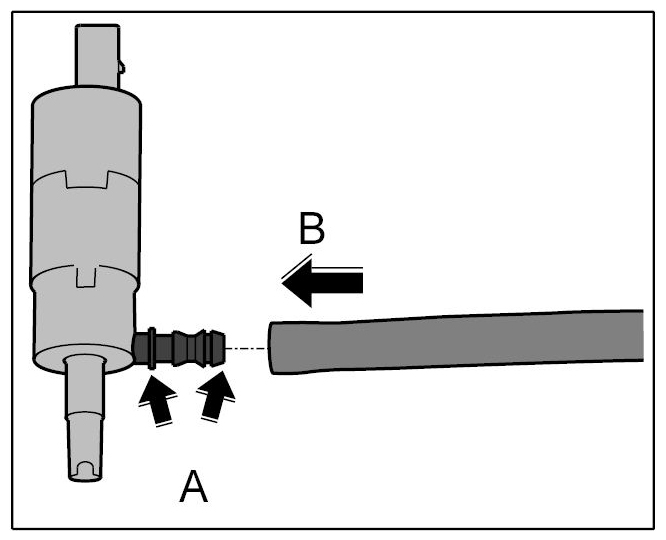

  2. Apply a suitable rubber lubricant (tyre mounting paste) to the sealing surface -Arrows A-  and attach the high-pressure hose to the pump -Arrow B-  .
    Fig 2: Connecting High-Pressure Hose To Pump
    G09415293Courtesy of PORSCHE CARS NORTH AMERICA, INC.

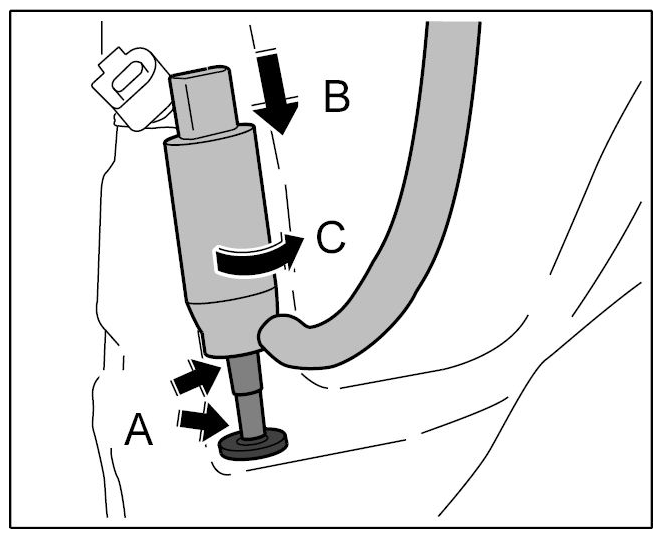

  3. Apply a suitable rubber lubricant (tyre mounting paste) to the sealing surface -Arrows A-  .
    Fig 3: Installing Pump
    G09415294Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Press high-pressure pump completely into rubber gasket -Arrow B-  and rotate to the limit position -Arrow C-  .

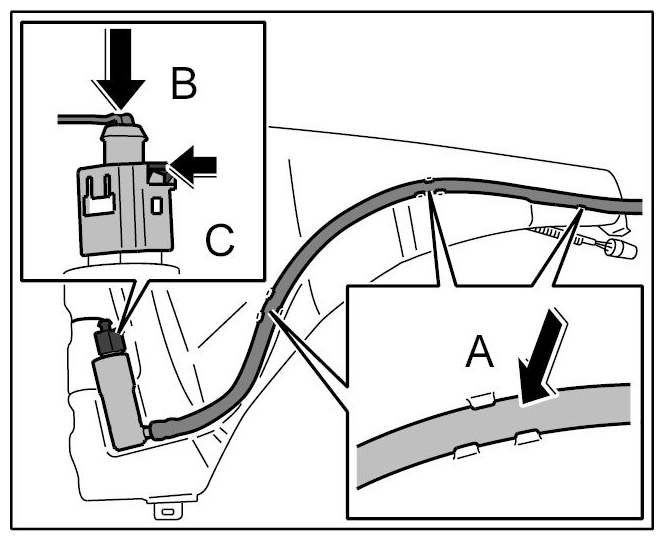

  5. Press high-pressure hose into retaining tabs -Arrow A-  until it is felt to engage in the tank.
    Fig 4: Clipping In Hose And Inserting Plug
    G09415295Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  6. Plug in the high-pressure pump connector -Arrow B-  until the locking tab -C-  is felt to engage.
