Removing Hose For Headlight Washer System

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

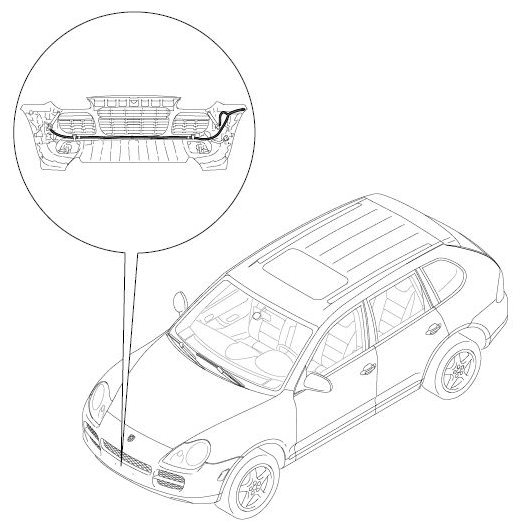

Fig 1: Overview Of Hose For Headlight Washing System

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unclip the high-pressure hose -arrows A- .

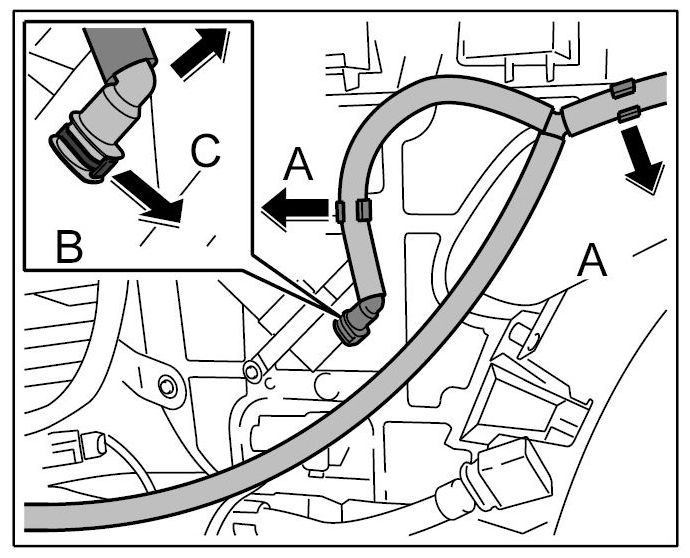

Fig 2: Unclipping High-Pressure Hose
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove retaining clip -arrow B- and pull off the hose on both spray jets -arrow C- .

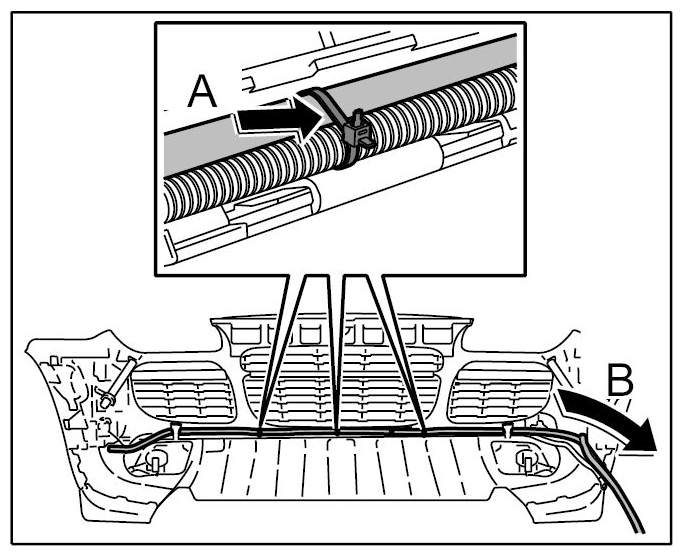

Cut through the tie-wraps -arrow A- and remove the hose on the right side -arrow B- .

Fig 3: Removing Hose On Right Side
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
