Installing Hose For Headlight Washer System

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Slide in hose on the right side -arrow A- and position it along the electrical wiring harness.

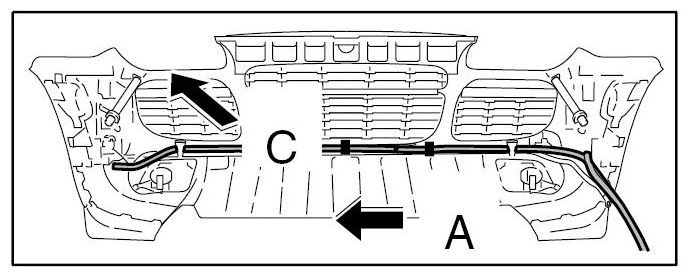

Fig 1: Routing Hose
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Push the hose onto the spray jets -arrow B- .
Press on the retaining clip -arrow C- until it locks in place.

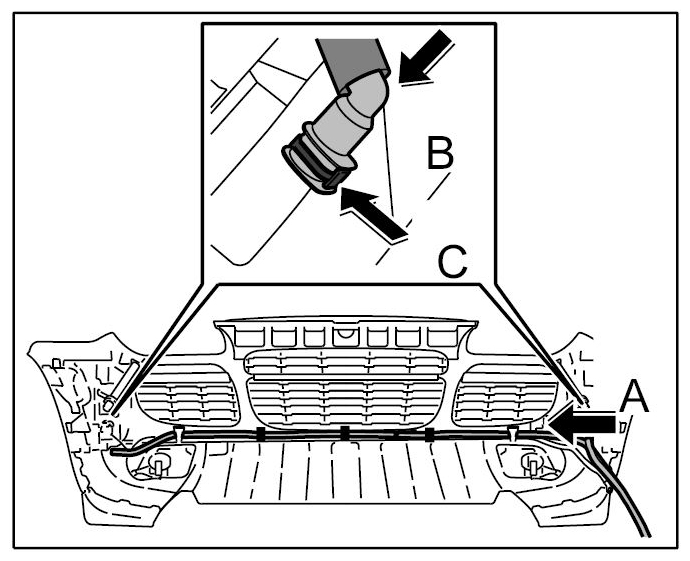

Fig 2: Pressing Retaining Clip
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information
- Before tightening with tie-wraps, make sure hose does not chafe on locking tabs of parking aid -B-.
Tighten hose with tie-wraps -arrow A- to the electrical wiring harness.

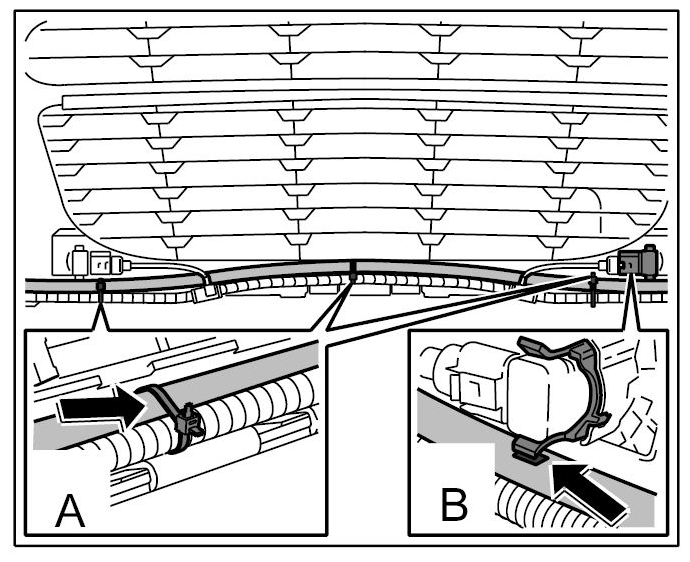

Fig 3: Locating Electrical Wiring Harness Locking Tabs
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Press hose in until it is felt to click into place in the clips -arrows- .

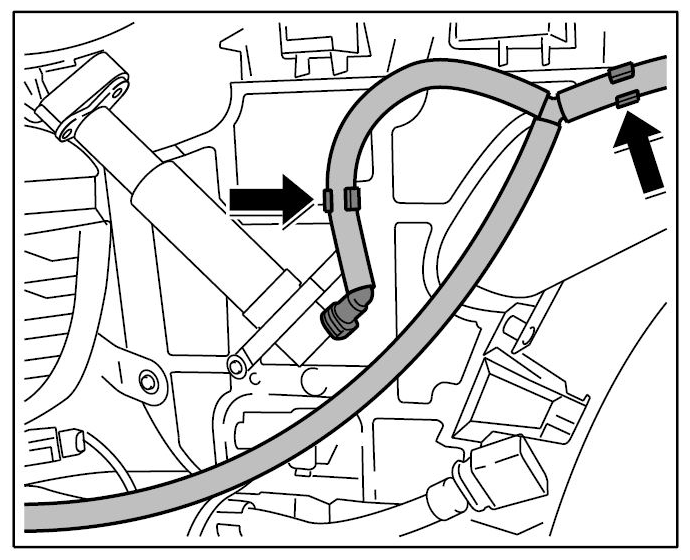

Fig 4: Locating Clip Hose
