Removing Relay For Headlight Washing System

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

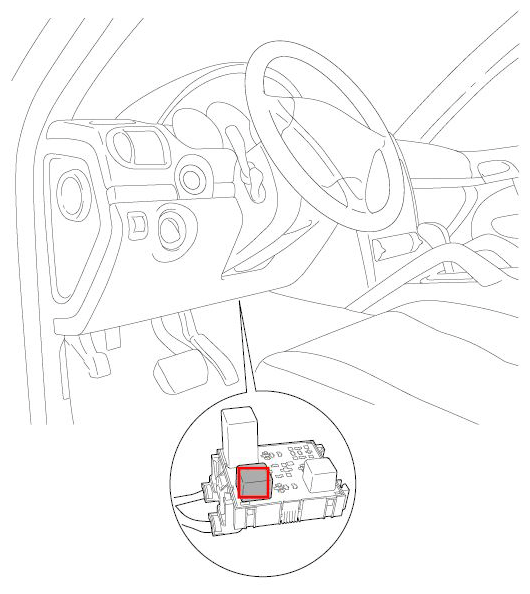

Fig 1: Overview Of Relay For Headlight Washer System
G09415276Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Release the relay carrier -arrows A-  and pull it down and out -arrow B-  .

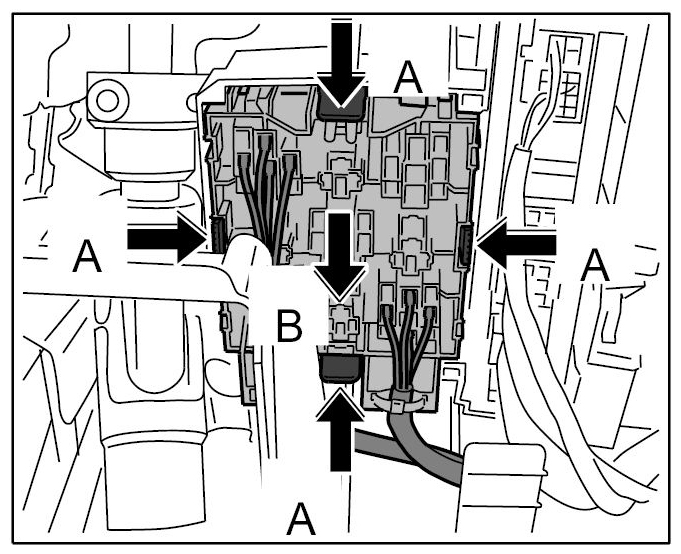

    Fig 2: Releasing Relay Carrier
    G09415277Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Pull the relay out of the relay carrier -arrow-  .

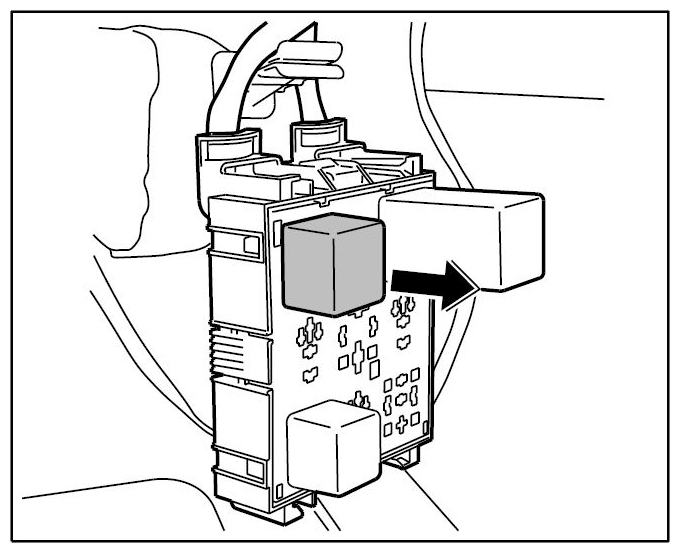

    Fig 3: Pulling Relay Out Of Relay Carrier
    G09415278Courtesy of PORSCHE CARS NORTH AMERICA, INC.
