Installing Relay For Headlight Washing System

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

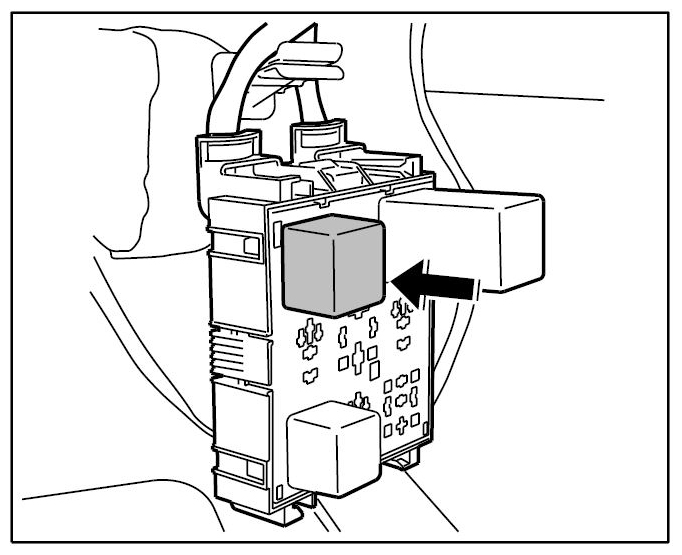

  1. Place relay on relay carrier -arrow-  .
    Fig 1: Placing Relay On Relay Carrier
    G09415279Courtesy of PORSCHE CARS NORTH AMERICA, INC.

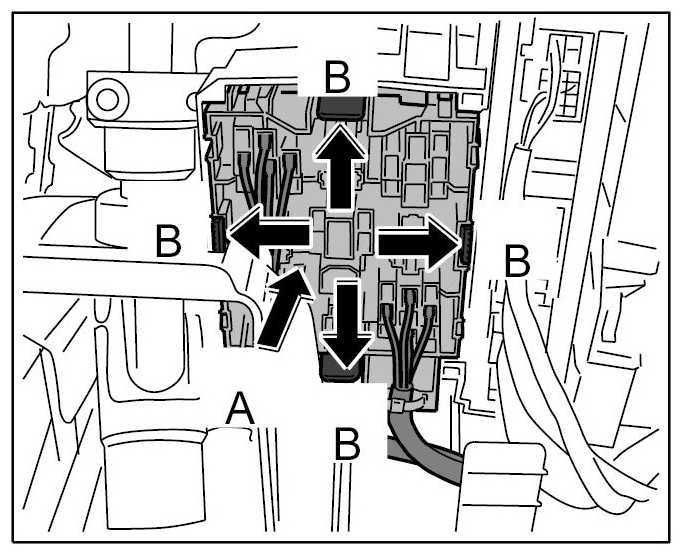

  2. Press relay carrier into the holder -arrow A-  until the locking lugs are felt to engage -arrows B-  .
    Fig 2: Pressing Relay Carrier Into Holder
    G09415280Courtesy of PORSCHE CARS NORTH AMERICA, INC.
