Removing Cover For Spray Nozzle

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Disengage cap on nozzle head.
1. 1.1. Front apron installed: Grasp spray nozzle cover at the sides, then pull out and hold the nozzle head -B- .
2. 1.2. Disengage cap at the latches on the nozzle head -arrows A- and remove.

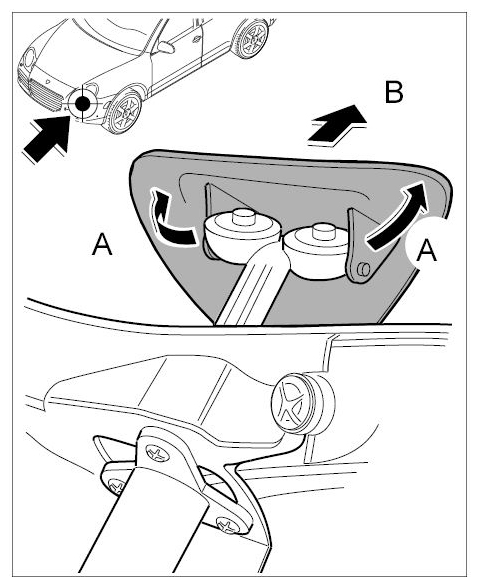

  Fig 1: Pressing Out Nozzle Head (Basic Model)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
