Installing Cover For Spray Nozzle

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

If the cover of the spray nozzle has to be replaced, the new part must be painted the same colour as the front apron.

Engage cap on nozzle head.
1. 1.1. Pull nozzle head out of the front apron -A- and hold it tightly.
2. 1.2. Engage cap at the latches on the nozzle head -arrows B- .

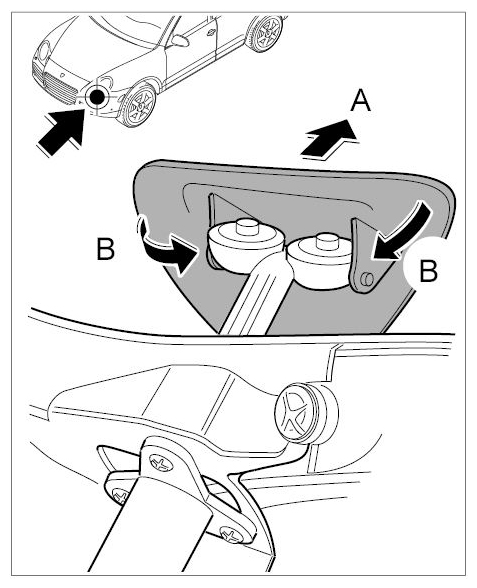

  Fig 1: Installing Nozzle Head (Basic Version)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Slide nozzle head and cover into the locking teeth on the spray nozzle.
Release spray nozzle and check the gap to ensure that the spray nozzle cover is positioned evenly all the way round.
