Removing Spray Nozzle

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the bonnet.
  2. Switch off ignition and remove ignition key.
  3. Disengage cover -arrow A-  , disconnect the electrical plug connection -arrow B-  and pull the hose connection -arrow C-  apart.
    Fig 1: Removing Spray Nozzle Cover
    G09415237Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Pull the spray nozzle downwards -arrow A-  and remove from the bonnet -arrow B-  along with the connections.

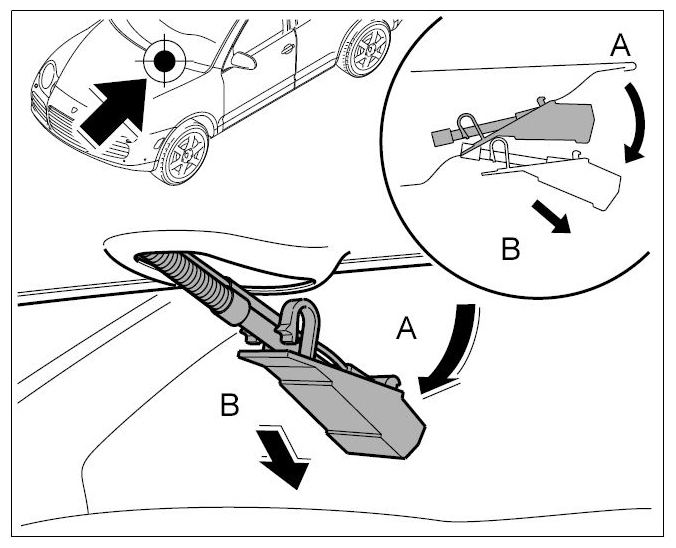

    Fig 2: Releasing Spray Nozzle
    G09415238Courtesy of PORSCHE CARS NORTH AMERICA, INC.
