Installing Spray Nozzle

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

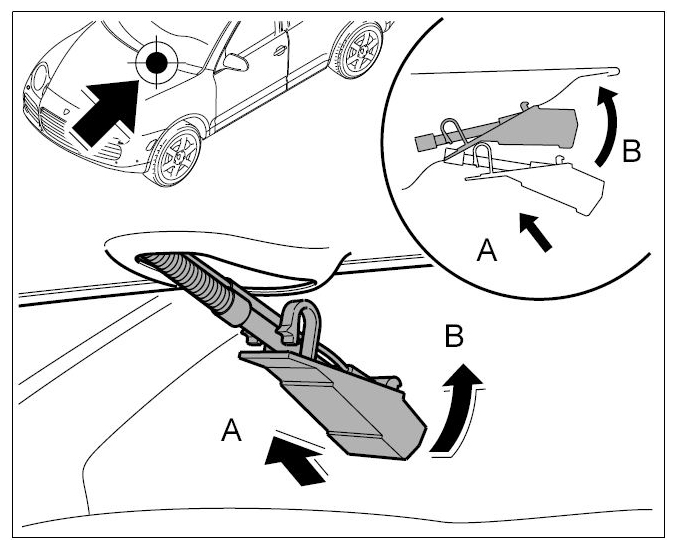

Insert spray nozzle along with the lines under the bonnet -arrow A- and engage -arrow B- .

Fig 1: Installing Spray Nozzle
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

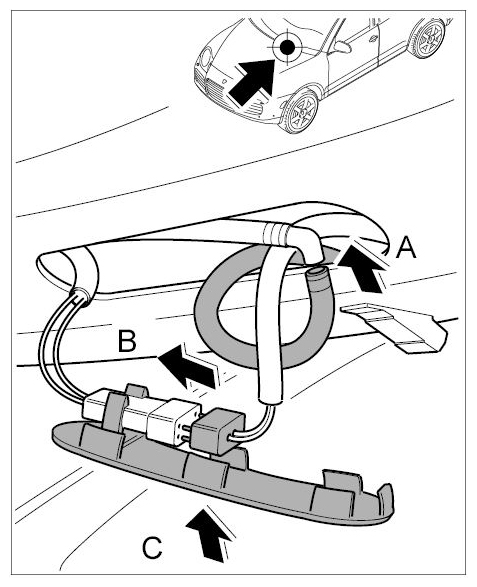

Insert the lines through the opening, connect electrical plug connection -arrow B- and connect the water feed line -arrow A- . Position the cover -arrow C- under the bonnet.

Fig 2: Fitting Cover For Spray Nozzle
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
