Adjusting Spray Nozzles

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Incorrect handling of spray nozzles

Risk of damage to spray nozzles

→ Do not insert sharp objects into the nozzle bore.

Information

The angle of the spray nozzle can be adjusted without the use of a tool, i.e. it can be adjusted by hand.
The recommended spraying range is in the central position.
Risk of damage to spray nozzles!

Close the bonnet.
Adjust the spray height -arrow- .

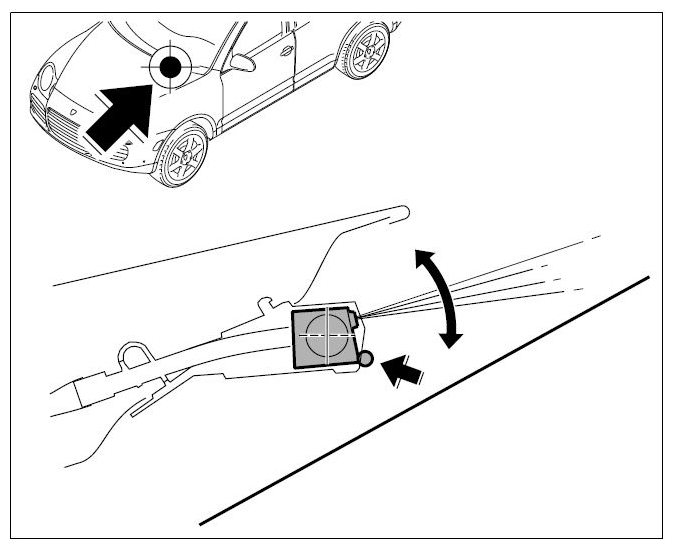

Fig 1: Adjusting Spray Height
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
