Removing Pump For Windscreen Washer System

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

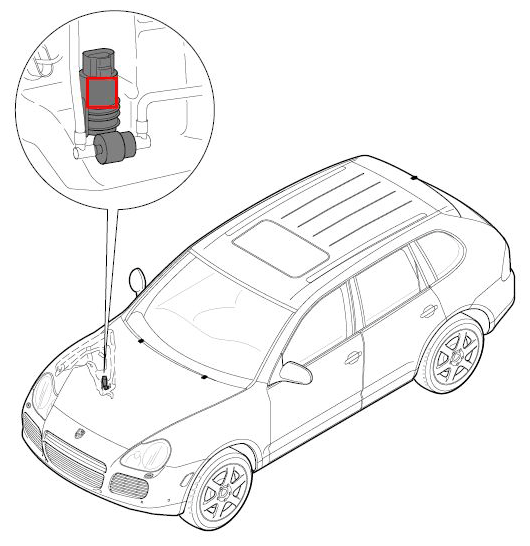

Fig 1: Overview Of Pump For Windscreen Washer System
G09415215Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Release and pull off plug -arrow-  .

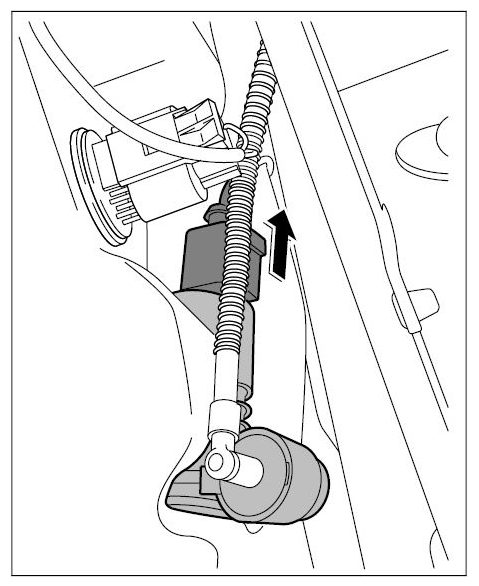

    Fig 2: Pulling Off Plug
    G09415216Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Information

    • A tight hose can be pulled off more easily if it is heated with a hot-air gun!
  2. Pull the two water lines off the pump -arrows A-  .

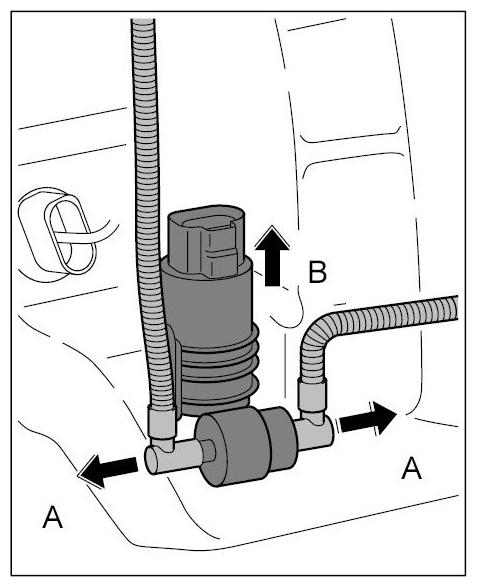

    Fig 3: Pulling Hoses Off Pump
    G09415217Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Pull the pump upwards out of the tank -arrow B-  .
  4. Remove rubber seal -arrow B-  using a removal tool, universal Nr.21  to lever it out of the tank -arrow A-  .

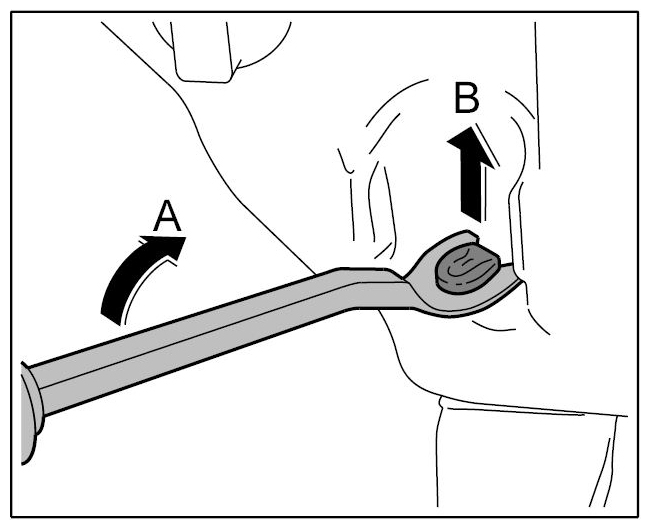

    Fig 4: Levering Out Rubber Seal
    G09415218Courtesy of PORSCHE CARS NORTH AMERICA, INC.
