Installing Pump For Windscreen Washer System

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Apply a suitable rubber lubricant (tyre mounting paste) to sealing surface -arrows A-  and press rubber seal into tank -arrow B-  until it is felt to engage.

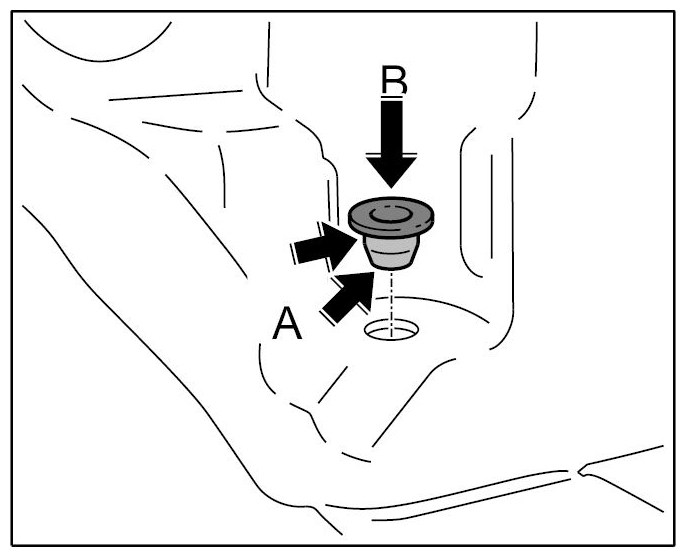

    Fig 1: Fitting Rubber Seal
    G09415219Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Apply a suitable rubber lubricant (tyre mounting paste) to sealing surface -arrows A-  and press pump into rubber seal -arrow B-  until it is felt to engage.

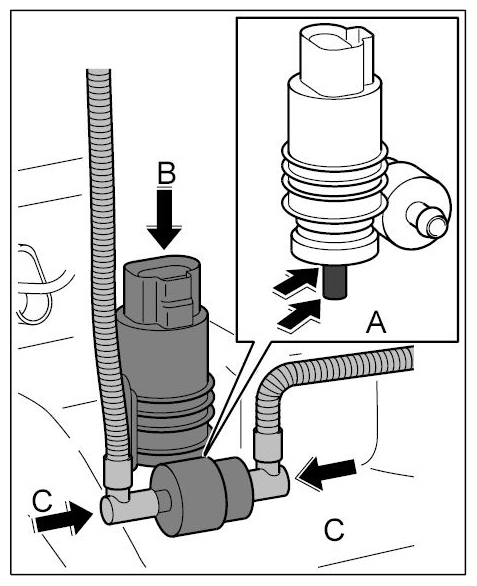

    Fig 2: Installing Pump
    G09415220Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Connect the two water lines to the pump connections -arrows C-  .
  4. Connect plug to pump -arrow-  until the lock is felt to engage.

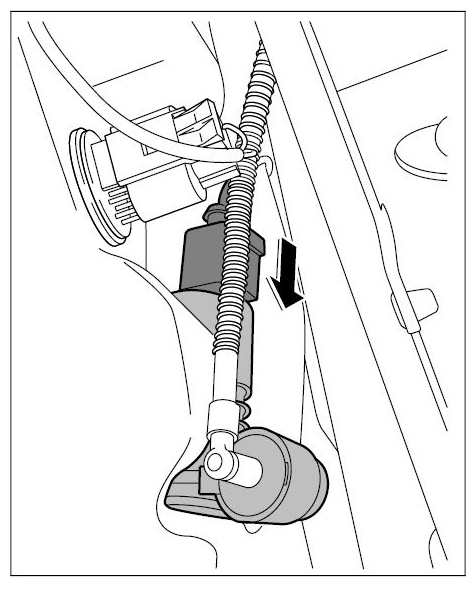

    Fig 3: Plugging In Connector
    G09415221Courtesy of PORSCHE CARS NORTH AMERICA, INC.
