Removing Wiper Arm For Rear Window Wiper System

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Switch on ignition, turn on wiper for rear window wiper system and as soon as the wiper is positioned vertically, switch off ignition. The wiper must remain in a vertical position.

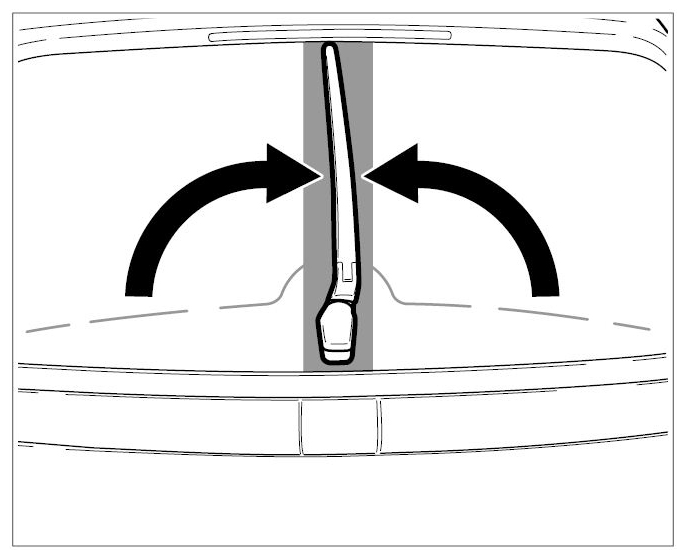

Fig 1: Positioning Rear Window Wiper For Removal
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
WARNING:
Electrically moved components
- Danger of limbs being trapped or severed
→ Switch off electric power to drive motor.

→ Make sure it does not switch on again.

→ Check that there is no electric charge.
Unclip cover cap -1- at side and remove it.

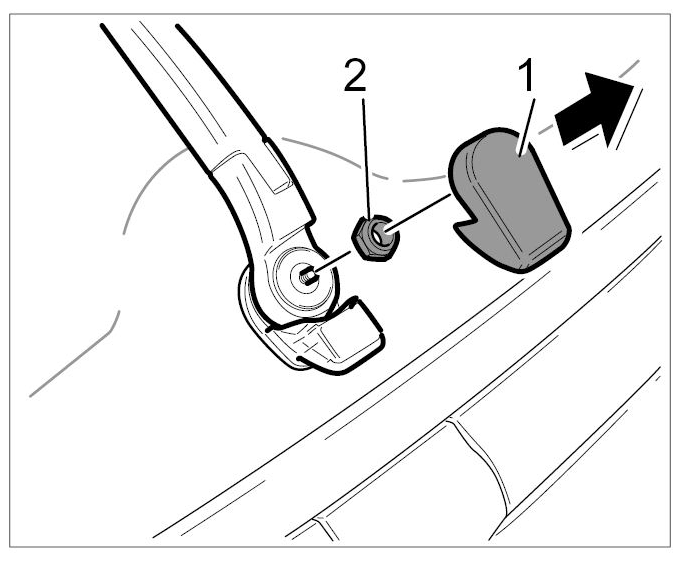

Fig 2: Screwing Off Fastening Nut For Rear Window Wiper
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Loosen fastening nut -2- .
Use the pole terminal puller 60 x 40 Nr.99 to pull the wiper arm off the wiper linkage and remove the wiper arm.

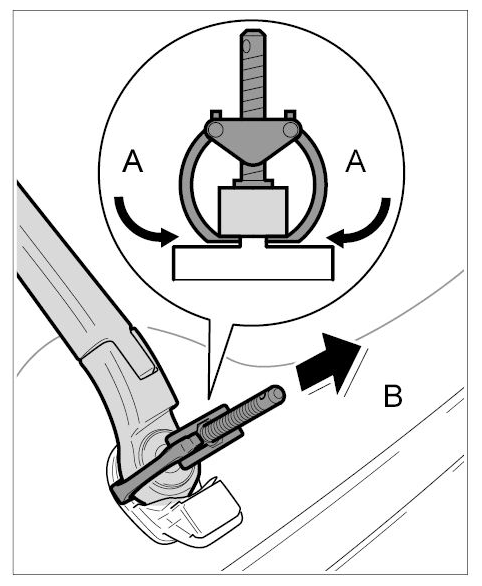

Fig 3: Pulling Off Wiper Arms
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
